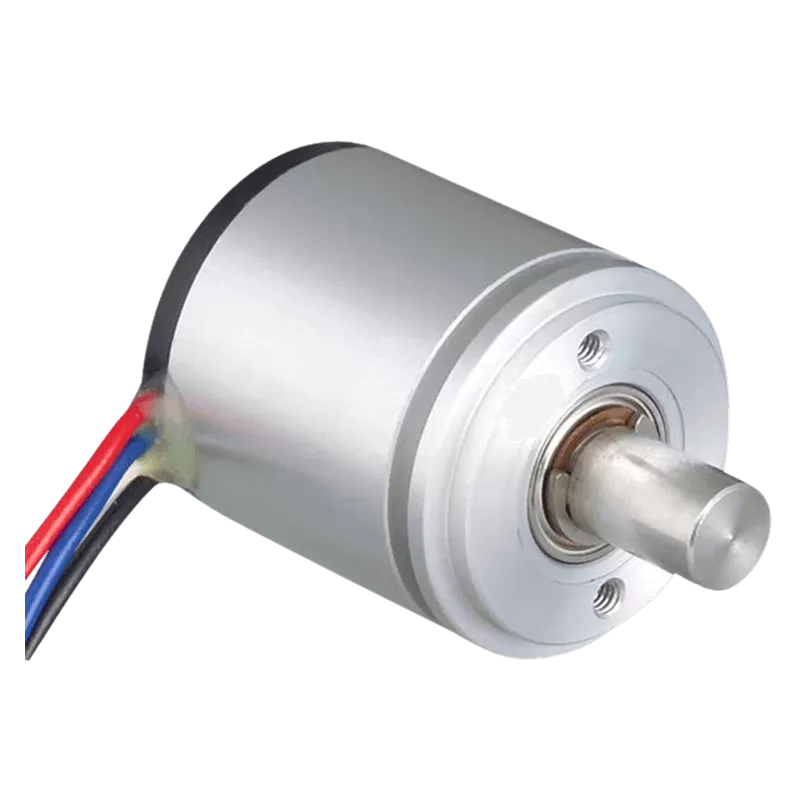

HSCB22 Non-linear Hall Effect Potentiometer
Non-linear Contactless type
Key features
- Long life
- Non-linear
- Precise Sin/Cos output
- Single turn
- Hall effect IC
About the HSCB22 Non-linear Hall Effect Potentiometer
The HSCB22 is a long-life, non-linear type potentiometer with precise Sin-Cos output.
A precise detection of Sine-Cosine function voltage can be obtained through the shaft revolution of the non-linear potentiometer series. The contactless type model HSCB is with a hall effect IC.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Applied voltage | 5v ± 10% D.C. |
| Conformity | ± 0.8% FS |
| Current consumption | Approx. 15mA |
| Electrical rotating angle | 360º (Endless) |
| Load resistance | 10k Ω min |
| Mass | Approx. 30g |
| Mechanical rotating angle | 360º (Endless) |
| Operating temperature range | -40ºC ~ + 105ºC |
| Output temperature characteristics | Within ± 1.0% Vout/FS |
| Output voltage range | Approx. 10%~90%Vin |
| Rotating torque | Within 0.5mN • m |
| Storage temperature range | -50ºC ~ + 105ºC |
