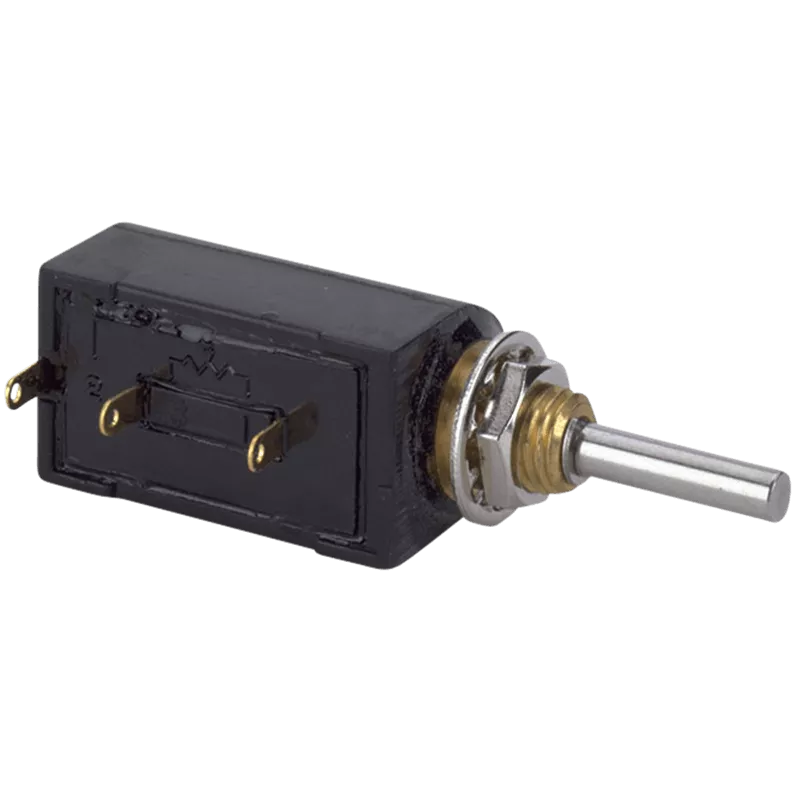

12HP Multi-turn Potentiometer
Wirewound (Bushingmount) with metric dimensions
Key features
- Wirewound
- Bushingmount
- Servomount
- RoHS Compliant
About the 12HP Multi-turn Potentiometer
- 3-turn type (S12HP-3)
- Shaft with front and rear extension (Rear shaft with 0.8mm dia. and 10mm length)
- Special machining on the shaft
- Simple sealed housing (In the case of servomount type, the housing length becomes longer by 1.2mm)
In the case potentiometers have special specifications, the general specifications and the environmental specifications may be affected. Please consult us in advance
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| (within 5kΩ) | (±0.25%) (±0.15%) |
| Precision Class | ±0.2% ±0.1% |
| Dielectric strength | 1 minute at 500 V.A.C. |
| Electrical travel | 360º Xn ±5º (n: No. of turns) |
| Independent linearity tolerance (5-turn 10-turn) | Standard Class: ±0.35% ±0.25% |
| Insulation resistance | Over 1,000 MΩ at 500 V.D.C. |
| Mass | Approx. 10g (both 5-turn and 10-turn) |
| Max. practical resistance value | 70kΩ (5turn), 150kΩ (10turn) |
| Max. torque exerted on fastening the mounting nut to the bushing | Within 0.8N·m (8kgf·cm) |
| Max. working voltage | 450V |
| Mechanical travel | 360º Xn (+15º n: No. of turns) |
| Noise | Within 100O E.N.R. |
| Power rating | 0.75W (5-turn), 1.5W (10-turn) |
| Resist. temp. coefficient of wire | ±20p.p.m./ºC |
| Shaft dia. (mm) | 3 |
| Standard resistance range | 100Ω to 50kΩ (5turn), 100Ω to 100kΩ (10turn) |
| Starting torque | Within 3mN·m (30gf·cm) (Bushingmount type), Within 2mN·m (20gf·cm) (Servomount type) |
| Stopper strength | Approx. 0.15N·m (1.5kgf·cm) |
| Total resistance tolerance | Standard Class ±3%(H), Precision Class ±1%(F) |
