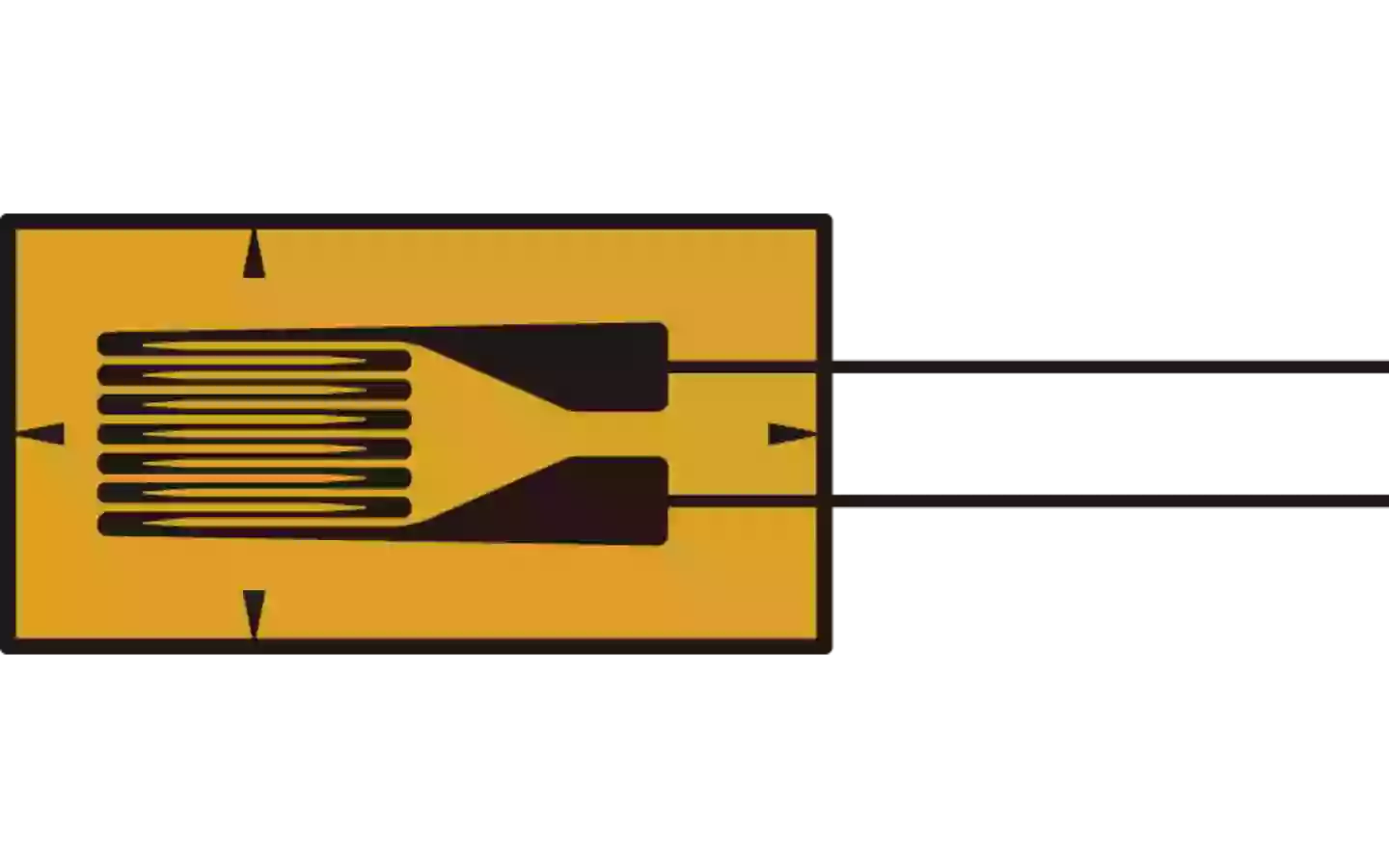

YEFLA Series Strain Gauges for High Strain Usage
Single element strain gauge for large strain measurement up to 10~15%
Key features
- 10~15% (100000~150000×10⁻⁶ strain) Strain limit
- Operational temperature: -20~+80°C
- Special plastics backing, Cu-Ni element
- Type: Single element, for large strain measurement
- Gauge resistance: 120Ω
- Gauge length: 2, 5mm
About the YEFLA Series for High Strain Straingauges
YEF series for high strain
These gauges are applicable to the measurement of large strain up to 10~15%. Also these withstand the repeated strain in elastic range (at strain level ±1500×10-6 strain) like ordinary strain gauges. However, these are not applicable to the measurement of repeated strain in a large range.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Applicable specimen | Metal |
| Backing | Special plastics |
| Bonding adhesive | CN, CN-Y |
| Element | Cu-Ni |
| Fatigue life at room temperature | 5×10⁵ (±1500×10⁻⁶ strain) |
| Operational temperature(°c) | -20~+80°C |
| Strain limit | 10~15% (100000~150000×10⁻⁶ strain) |
| Temperature compensation range(°c) | - |
