FLM Series Metal Backing Strain Gauges for Concrete Material
Single element straingauge which prevents the penetration of moisture
Key features
- 0.5% (5000×10⁻⁶ strain) Strain limit
- Operational temperature: -20~+80°C
- Gauge resistance: 120Ω
- Gauge length: 30, 60mm
- Type: Single element, for concrete and mortar use
About the FLM Series Metal Backing Straingauges for Concrete Material

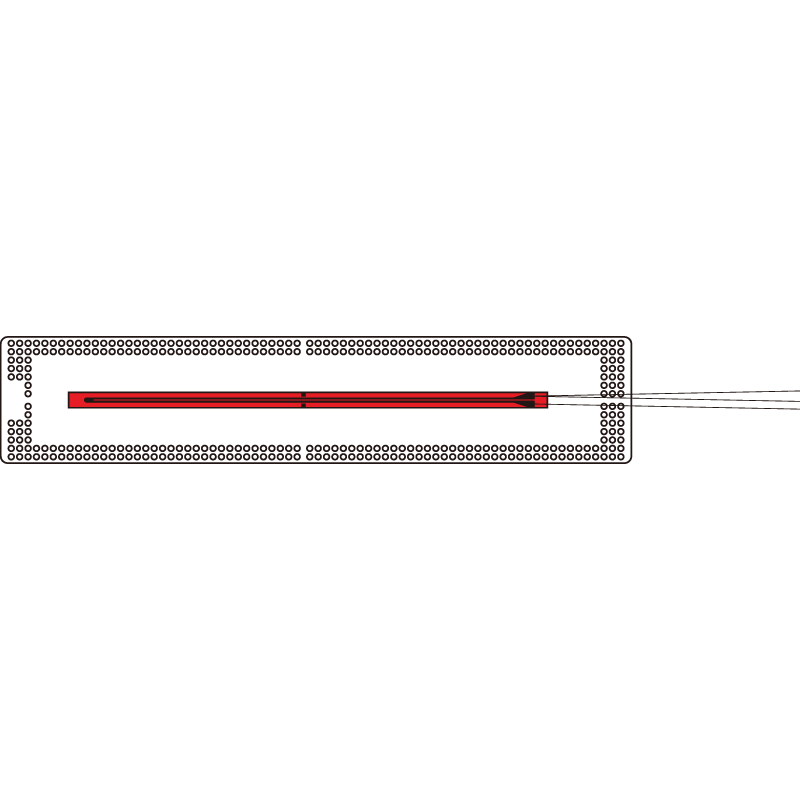

FLM/WFLM series metal backing strain gauge
These strain gauges have thin stainless steel backings which prevent the penetration of moisture from the reverse sides. This construction is aimed for successful strain measurement on concrete surface. The WFLM gauges have moisture proofing over-coating and integral leadwire in addition to the stainless steel backing. It is intended for long term measurement or measurement on underwater-curing concrete.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Backing | SUS304 |
| Bonding adhesive | PS |
| Element | Ni-Cr |
| Fatigue life at room temperature | 1×10⁶ (±1000×10⁻⁶ strain) |
| Main object material | Concrete, mortar |
| Operational temperature(°c) | -20~+80°C |
| Strain limit | 0.5% (5000×10⁻⁶ strain) |
| Temperature compensation range(°c) | +10~+80°C |
