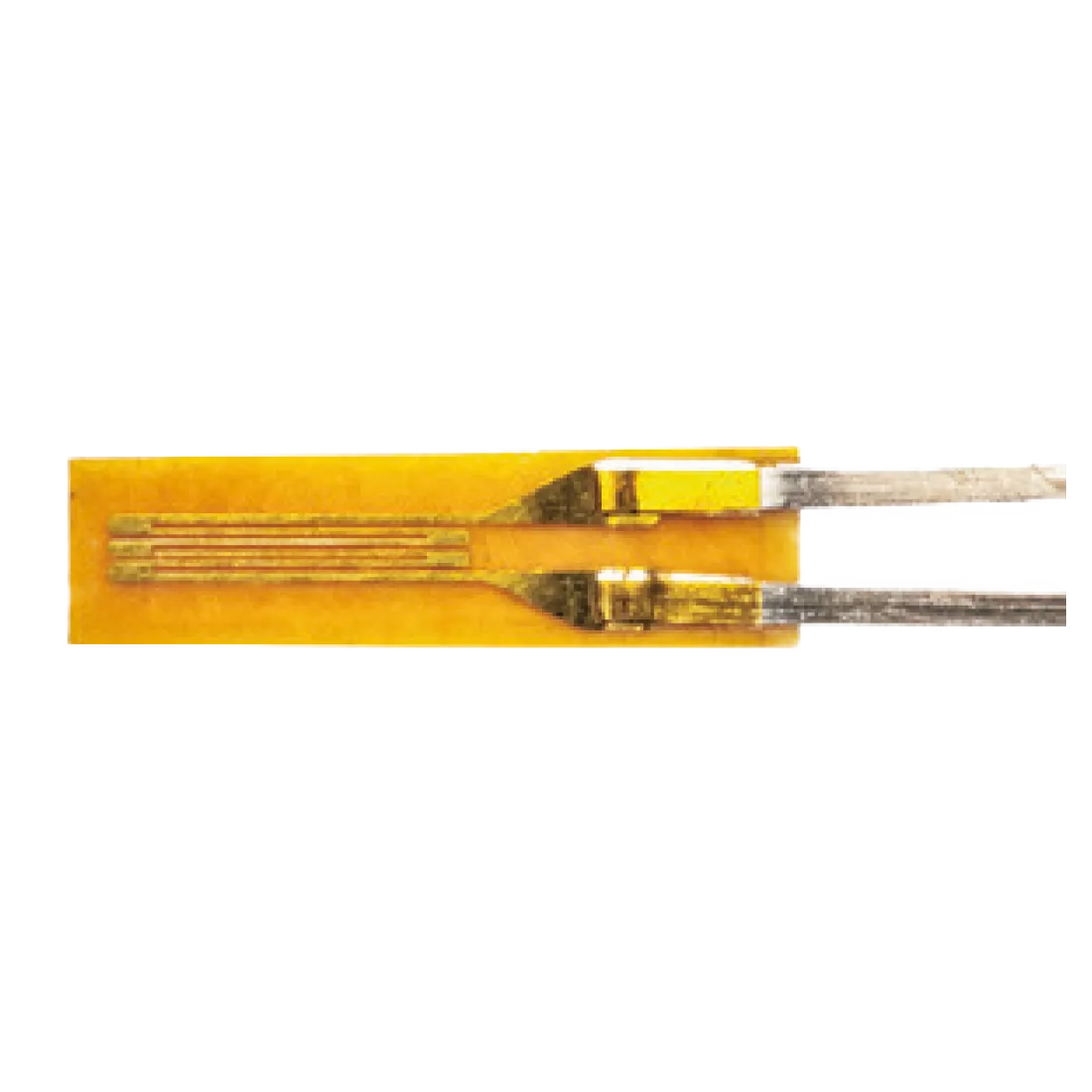

HZFLA Series High Temperature Strain Gauges

---

Key features

• Strain limit: 1%(10000×10-6 strain)
• Operational temperature: -196~+350°C
• Polyimide backing
• Gauge resistance: 120Ω
• Gauge length: 2mm
• Type: High temperature miniature single element, general use

---

About the HZFLA Series High Temperature Strain Gauges

HZFLA Series – High-Temperature Strain Gauges up to 350 °C

The HZF Series consists of bondable high-temperature strain gauges designed for applications where standard strain gauges reach their limits due to elevated process temperatures. These gauges are rated for measurements up to 350 °C, making them an excellent choice for demanding test, development, and measurement tasks in hot environments.

A key practical benefit: the lead wires are welded to high-temperature cables, creating a robust, temperature-resistant connection. The series is also RoHS compliant.

Key benefits

• Temperature capability up to 350 °C for high-temperature strain measurements
• Bondable design for flexible installation on components and structures
• Welded lead-wire connection to high-temperature cables for high reliability
• RoHS compliant
• Configurable: specify the required cable length when ordering

Typical applications

• High-temperature test rigs and components (e.g., industrial furnaces, engine/drivetrain development, hot gas/exhaust measurements)
• Material testing and structural monitoring at elevated temperatures
• R&D, validation, endurance and life-cycle testing

Selection & ordering notes

• Specify cable length: Please provide the required cable length when placing your order.
• Adhesive selection matters: C-1 can be used up to 350 °C for short cycles. For long-term or repeated measurements, we recommend confirming the best adhesive/process setup for your application.

---
