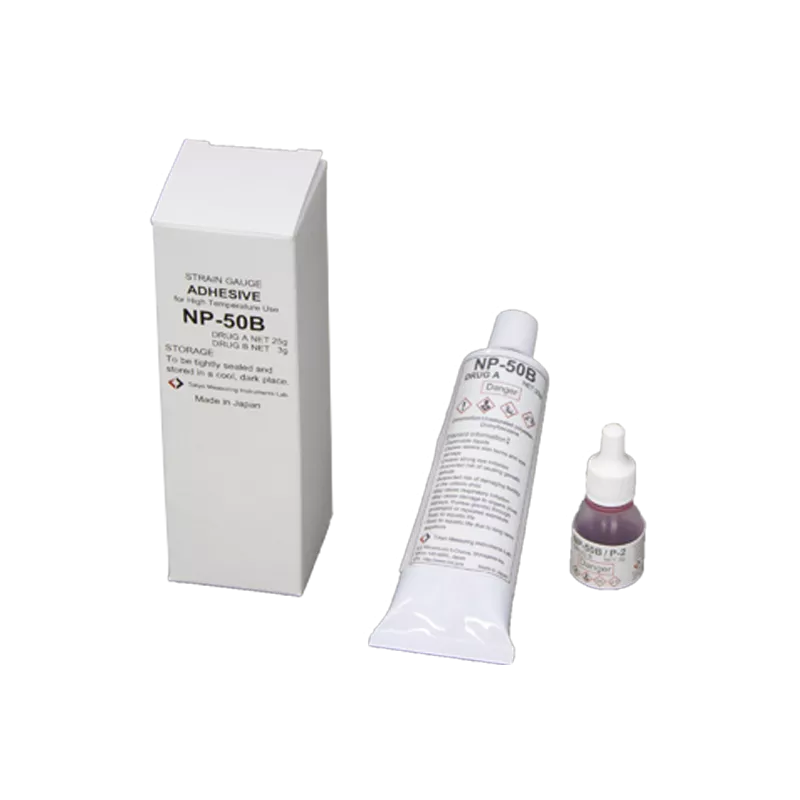

NP-50B adhesives (High temperature)
Two-component, room-temperature-curing, Mixing ratio: 3~4%
About the NP-50B adhesives
The NP-50B is a two-component room-temperature-curing polyester adhesive for bonding QF, ZF and BF series strain gauges. Put the necessary quantity of drug A into the supplied mixing vessel then add drug B by drops to total 3~4% by weight of drug A. Use the mixed adhesive within 5~20 minutes.
Suitable strain gauge series
QF, ZF, BF
Suitable materials
- metals
- composite
Service temperature range of cured adhesive
-30 to +300 ℃
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Applicable specimen | Metal, Composite |
| Component | Polyester |
| Contents | A:25 g, B:3 g |
| Curing temperature and time | Room temperature Pressure 50 to 300kPa 16 hrs |
| Operating temperature | -30 to +300 ℃ |
| Shelf life | 6 months |
| Type | Two component Room-temperature-curing (Mixing ratio: 3 to 4%) |
