BFRA Series Strain Gauges for Composite Material Use

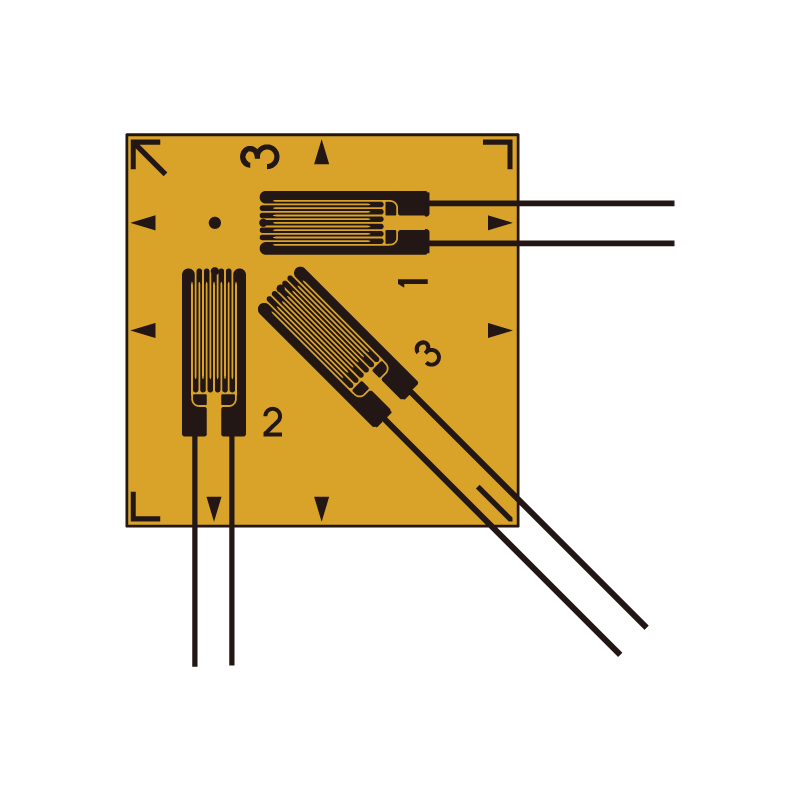

3-element 0°/45°/90° plane type for composite material measurement
Key features
- 3% (30000×10⁻⁶ strain) strain limit
- Operational temperature: -20~+200°C
- +10~+80°C temperature compensation
- Polyimide backing, Cu-Ni element
- Type: 3-element, composite material use
- Gauge resistance: 120Ω
- Gauge length: 2, 5mm
About the BFRA Series for Composite Material Use
BF series composite strain gauge
These are foil strain gauges designed for measurement on composite materials. They have a specially designed grid pattern to enable small stiffening effect and excellent peformance in strain measurement up to 200°C. This series is available with self-temperature-compensation for a material having coefficient of thermal expansion of 3,5 or 8×10-6/°C. This series is recommended for use on ceramic, carbon and composite materials.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Backing | Polyimide |
| Bonding adhesive | CN, NP-50B |
| Element | Cu-Ni |
| Fatigue life at room temperature | 1×10⁶ (±1500×10⁻⁶ strain) |
| Main object material | Composite materials |
| Operational temperature(°c) | -20~+200°C |
| Strain limit | 3% (30000×10⁻⁶ strain) |
| Temperature compensation range(°c) | +10~+80°C |
