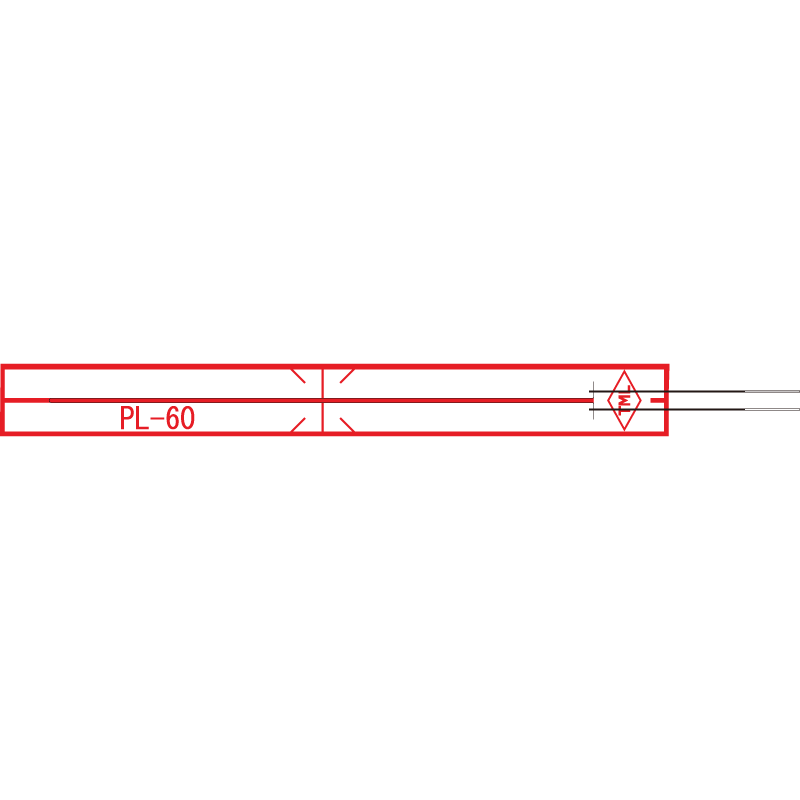

PLW Series Strain Gauges for Wood Use
Thin metal backing for long term measurement on wood
Key features
- 2% (20000×10⁻⁶ strain) Strain limit
- Operational temperature -20~+80°C
- Temperature compensation: +10~+80°C
- Thin metal backing for long term measurements
- Type: For long term measurement on wood
- Gauge resistance: 120Ω
- Gauge length: 60mm
About the PLW Series for Wood Use
PFLW/PLW series long term use strain gauge on wood
This gauge has a thin metal backing for long term measurement on woods, not affected by moisture contained in wood. The gauge is bonded with PS adhesive.
Temperature compensation materials
- 11: Wood
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Applicable specimen | Hout |
Backing | Polyester |
Bonding adhesive | PS |
Element | Cu-Ni (wire) |
Fatigue life at room temperature | 1×10⁶(±1000×10⁻⁶ strain) |
Operational temperature(°c) | -20~+80°C |
Strain limit | 2% (20000×10⁻⁶ strain) |
Temperature compensation range(°c) | +10~+80°C |
