AWHU-5 Full Bridge Strain Gauges for Static or Dynamic Measurement
Static and dynamic measurement up to 800°C
Key features
- 1% (10000×10⁻⁶ strain) Strain limit
- Operating temperature: -196~+800°C
- Inconel backing, Special alloy element
- Gauge resistance: 60Ω
- Gauge length: 5mm
- Type: Full bridge, static and dynamic strain measurement
About the AWHU-5 Full Bridge for Static or Dynamic Measurement

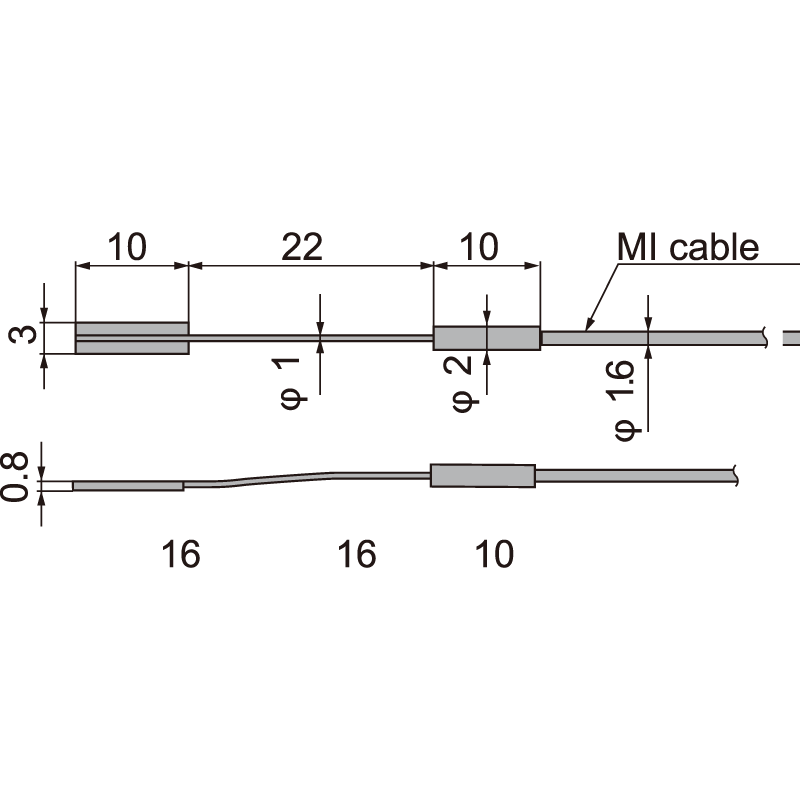

These gauges are usable up to 800°C for both static and dynamic measurement. Although it has a half bridge construction consisting of active and dummy gauges, the measurement is made by the full bridge method using the supplied temperature compensation circuit board. The gauge base, junction part and cable of this gauge are constructed small as the standard specifications, and it is suited to the installation on a narrow or curved part.
AW series high temperature weldable strain gauge
These strain gauges have strain sensing elements fully encapsulated in corrosion-resisting metal tubes made of stainless steel or Inconel (except AW-6-350). The strain gauge backings are also made of the same material, and the gauges are installed by spot welding to metal specimens using a dedicated spot welder. The maximum operating temperatue is 800°C for the AWHU. These gauges are suited to measurement in high temperature harsh environments such as underwater or gas-filled atmosphere, or for long term. The AWC-2B and AWCH-2 are available in 1-Gauge 4-Wire configuration.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Backing | Inconel |
| Bonding adhesive | Spot welding (TML spot welder W-50R is required) |
| Element | Special alloy |
| Fatigue life at room temperature | 1×10⁶ (±1000×10⁻⁶ strain) |
| Main object material | Metal |
| Operational temperature(°c) | -196~+800°C |
| Strain limit | 1% (10000×10⁻⁶ strain) |
| Temperature compensation range(°c) | RT~+800°C |
