OTG-P Fiber Optic Temperature Sensors
For demanding applications and rough handling usage
About the OTG-P Fiber Optic Temperature Sensors
GaAs-based fiber optic temperature sensor for demanding applications and rough handling usage.

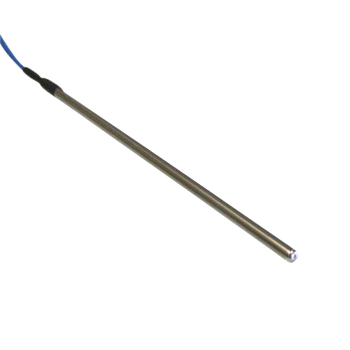

The OTG-P fiber optic temperature sensor is encapsulated in a rugged stainless steel tube (ceramic tube also available) for maximum protection the most adverse handling conditions. The sensor uses the well proven technique based on the temperature dependent bandgap of GaAs crystal as the temperature transduction mechanism.
It delivers unprecedented repeatability and reliability in the most adverse conditions. The spectrally encoded light signal is completely immune to EM, RF, MR and microwave fields.
This robust sensor is available with different optical cables lengths. Fully customizable according to your specific application.
Features OTG-P
- Robust design
- Good accuracy
- Low drift and low hysteresis
- EMI/RFI and microwave immune
- Intrinsically safe
- -40 °C to +250 °C temperature range
Applications for OTG-P
- EM, RF and microwave environments
- Sterilization applications
- Nuclear and hazardous environments
- Civil engineering and geotechnical applications
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Cable length | 1.5 meters standard (other lengths available) |
Cable sheathing | Operating temperature dependant |
Dimensions | 4,8 mm O.D. |
Measurement range | -40°C to + 250°C |
Optical connector | ST (standard) |
Precision | +/- 0,8 °C or better |
Resolution | 0.1°C |
Signal conditioner compatibility | All SCBG signal conditioners with 62.5/125 microns |
