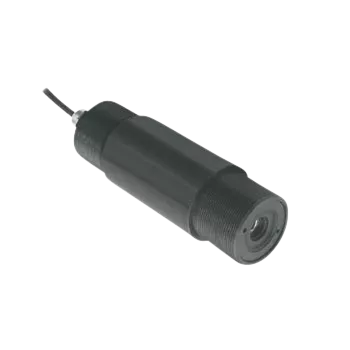

FTCX-LT Infrared Temperature Sensor
Has a very robust housing and is especially suited for employment in industrial applications
About the FTCX-LT Infrared Temperature Sensor
The pyrometers FTCX-LT have a very robust housing and are, consequently, especially suited for employment in industrial applications.
The measuring heads are designed for a broad temperature range from -30°C to 900°C (-22 °F to 1652 °F). The infrared pyrometers FTCX-LT allow for either a simple two-wire installation or computer-plugging via USB.
The robust pyrometer can be used for a variety of industrial employments. Due to its compact design and high temperature resistance it is well-suited for vehicle construction and lamination processes, which take place under exact temperatures, or for temperature control in mobile varnish driers.
Features FTCX-LT
- Easy two wire installation
- Optional USB programming interface and software
- Optical resolution of 22:1
- Simultaneous two wire output and digital communication
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Response time | 150ms |
| Spectral range | 8 – 14 μm |
| Temperature range | -30°C to 900°C |
| Wide power range | 5-30 VDC |
