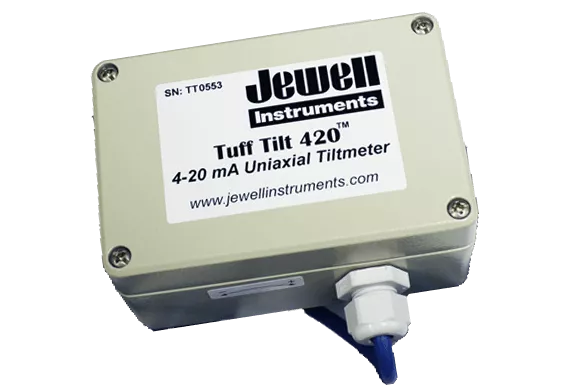

About the C801 Tuff Tilt Tiltmeter

The C801 Tiltmeter delivers the same precision and durability of our A801 Tuff Tilt Tiltmeter with ±5V Output, but with 4-20mA output. Units are available in single axis (uniaxial), and dual axis (biaxial) tilt configurations.

The C801 Tuff Tilt is current loop powered, so tilt measurements are made using an economical 2-wire pair, and because output is 4-20mA there is no signal loss over long cables. Units also include an on-board thermistor for temperature measurements.

All units are rated IP65 waterproof for advanced protection from the elements. Use the C801 for structural monitoring, 4-20mA PLC systems, industrial measurement and control, or anywhere long cable runs are necessary.

Suitable applications for the C801 Tiltmeter

Structural Monitoring
Platform Leveling
Industrial Measurement & Control

The 801 Tiltmeter is available in a variety of configurations including single axis (uniaxial), or dual axis (biaxial), analog, digital, or 4-20mA outputs. All units are rated IP65 waterproof for advanced protection from the elements.

Other Configurations

Single-axis, Dual-axis, Digital, IP65, Analog, Waterproof, RS-232, RS-422, RS-485, Tuff Tilt, Datalogger, Thermistor

Do you need this sensor for your next project?

Request a quotation today or leave your details to recieve more information from one of our experts.

Talk to an expert

Product downloads

C801 tuff tilt tiltmeter with 4 20ma output en

Have it your way

Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.

Talk to an expert

Technical Specifications

Specification	Value
Dimensions	4,72 x 3,15 x 2,36 CM
Housing	Diecast painted aluminum (IP65)
Output	4-20mA Two-wire current loop (per axis)
Power requirement	(0.02 Ampere x R + 10 Vdc) < Vs < 29 Vdc
Range	±0.5°/±3°/±50° uniaxial
Resolution	0.0001°/0.0006°/0.01°
Temperature range	-40 to +85°C operation and storage
