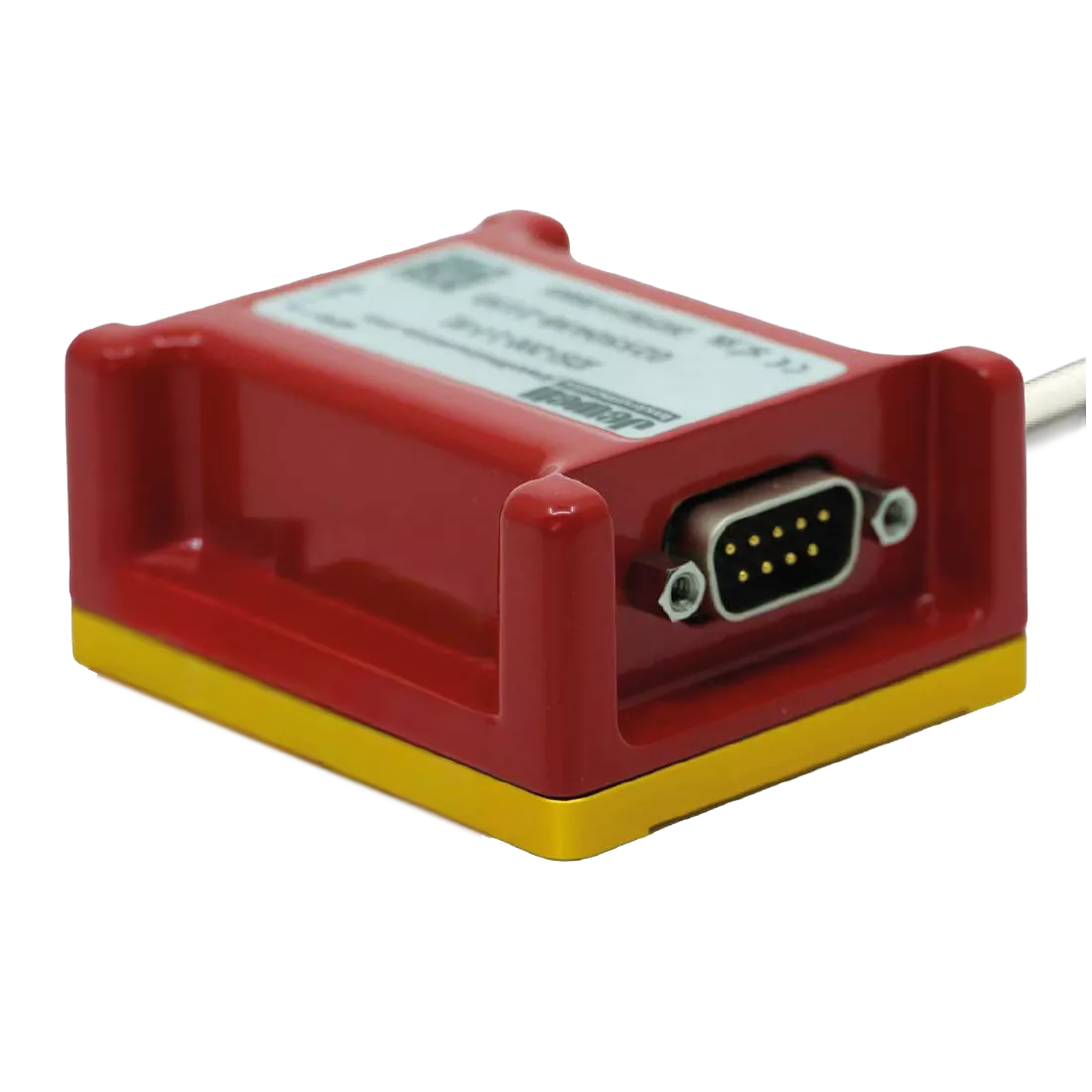

JDHI-100/200 Ruby MEMS Digital Inclinometer

---

Key features

• High-Precision with 0.0001° resolution
• Operating Temp Range: -40° to +85°C
• Seal: IP67
• M12 and DB9 termination options
• CE and RoHS compliant

---

About the JDHI-100/200 Ruby MEMS Digital Inclinometer

The new digital inclinometers of the Ruby MEMS series represent the next generation of high-performance inertial sensors. Combining excellent precision with a robust design, these sensors deliver outstanding performance at a competitive price point.

With a resolution of up to 0.0001°, exceptional frequency response, and wide bandwidth, the Ruby series is designed for demanding industrial applications. Housed in a rugged IP67 enclosure, these inclinometers are built to withstand harsh environments.

Key Features

• High resolution up to 0.0001°
• Measurement ranges from ±1° to ±90°
• Temperature-compensated for consistent accuracy
• Operating temperature range: -40°C to +85°C
• Digital interfaces: ASCII (RS-232/RS-485) and Modbus (RS-485)
• Compact design with drop-in compatibility to existing Jewell MEMS models
• IP67-rated housing for industrial environments
• Available with M12 or DB9 connector options
• CE and RoHS compliant

Application Areas

• Precision laboratory tilt measurements
• Industrial position and angle monitoring
• Platform leveling systems
• Structural health monitoring
• Automation and robotics

Integration Benefits

Thanks to its identical mounting footprint compared to previous Jewell MEMS sensor models, the Ruby series allows for easy drop-in replacement. This minimizes downtime and simplifies upgrades or retrofits.

Compliance & Standards

The Ruby MEMS inclinometers meet CE and RoHS standards, ensuring compliance with international industrial quality and safety regulations.

---
