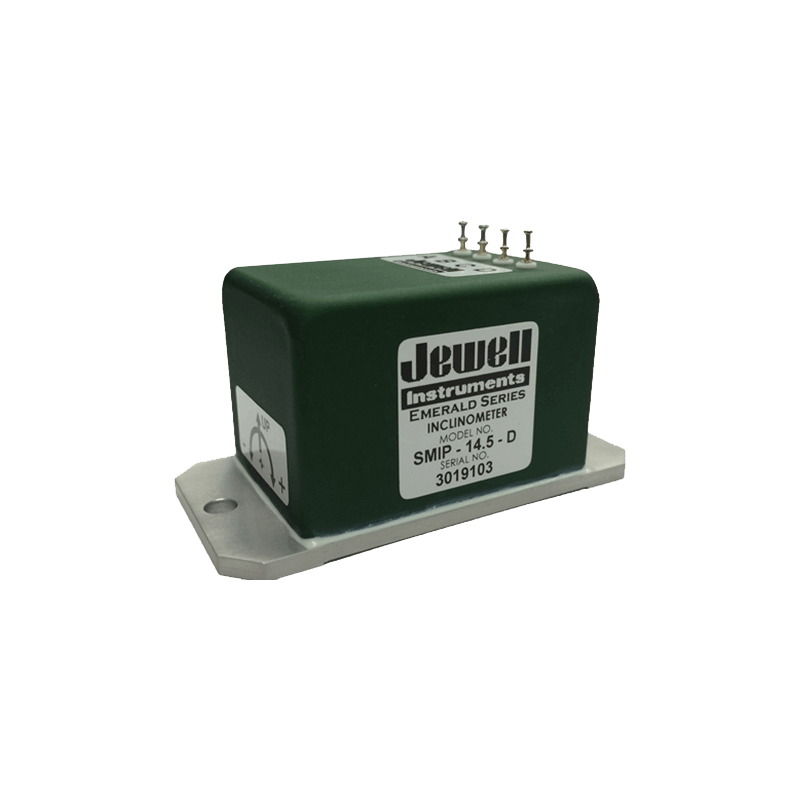

SMI Single-Axis Analog Inclinometer
High-Precision Force Balanced Inclinometer
Key features
- Extremely Rugged
- Lower Cost than Traditional Force-Balance Inclinometers
- High Resolution
- Greater Precision than MEMS Technologies
- ±5VDC, 0-5 VDC, and 4-20mA Output Available
- Single-Ended and Dual Power Inputs Available
- RoHs Compliant
About the SMI Single-Axis Analog Inclinometer
The SMI Single-Axis Analog Inclinometer is a rugged, high-precision force-balanced inclination sensor. These RoHS-compliant inclinometers are available in three different versions (D, L, & S series), with either a circular connector or a pin connection, and varying input and output specifications in order to meet your specific needs.
Available configurations
Download the datasheet for specifications per configuration.
- SMI-L with 4-20mA Output (general datasheet)
- SMI-D with +/-5V Output
- SMI-S with 0-5V Output
Suitable applications
- Aerospace
- Military
- Robotics
- Academic Research
- Geotechnical Monitoring
- Track Monitoring and Testing
- Vehicle Wheel Alignment
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Input current (ma, maximum) | 40 / 55 / 40 |
| Input voltage range (vdc) | ±12 to ±18 / ±12 to ±18 / ±15 to ±30 |
| Noise (vrms, maximum) | 0.002 / 0.006 / 0.002 |
| Number of axes | 1 |
| Operating temperature range | -55°C to +85°C |
| Output impedance (ohms, nominal) | 40 / 10 |
| Seal | IP65 |
| Shock | 500g, 1 msec, ½ sine |
| Storage temperature range | -60°C to +90°C |
