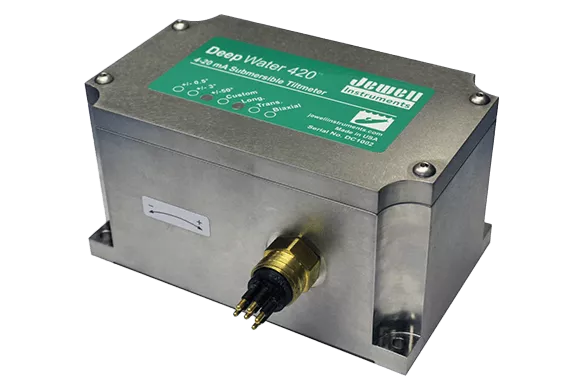

C802 Deep Water Submersible Tiltmeter with 4-20mA Output
High-precision submersible tiltmeter for use in marine, offshore, and deep ocean applications
C802 Deep Water Submersible Tiltmeter with 4-20mA Output
The model C802 Deepwater (Tuff Tilt) is a high-precision submersible tiltmeter for use in marine, offshore, and deep ocean applications with 4-20mA output. Using an absolute gravity referenced electrolytic sensor, the C802 delivers superior measurement accuracy with virtually no long-term drift.
High-gain units are sensitive to <0.0017 mm/m or better. All units are rated to +2500m waterproof for advanced protection from the elements. Use the C802 Tiltmeter for structural monitoring, angle measurement and control, platform leveling, and more.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Dimensions | 149 x 91 x 82 mm |
| Housing | 316 stainless steel |
| Output | 4-20 mA (2-wire current loop, per channel) |
| Power requirement | ~12 to 29 VDC |
| Range | ±0.5°, ±3°, ±50° uniaxial or biaxial |
| Resolution | 0.0001°, 0.0006°, 0.01° |
| Temperature range | -4 to +60°C |
