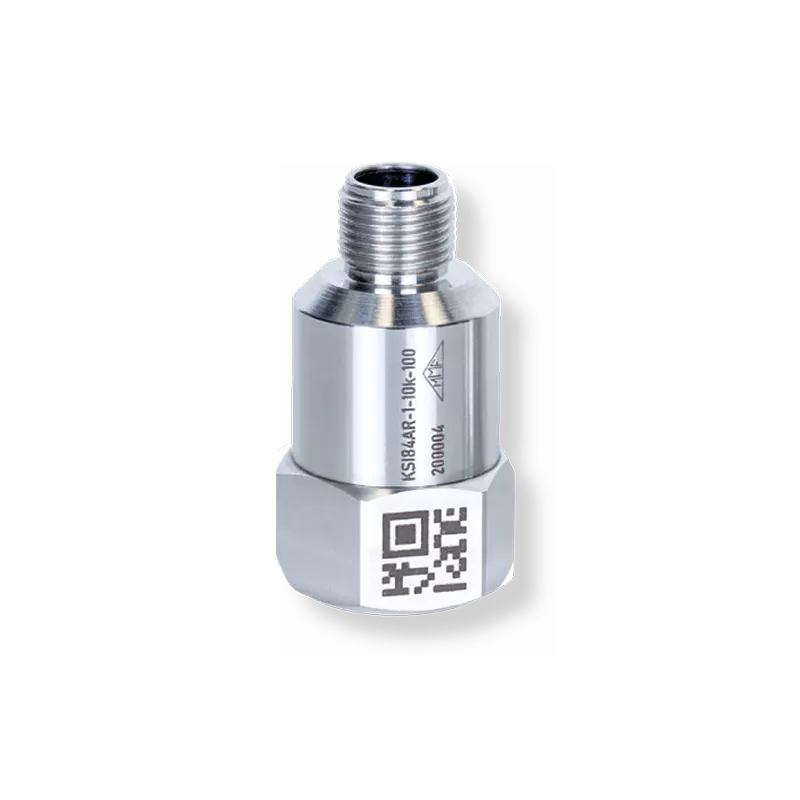

KSI84Ax Acceleration Sensor
Suited for applications at higher frequencies, e.g. bearing or gearbox monitoring and for shock vibration
Key features
- For direct connection to standard control and measurement equipment
- More than 200 types with with RMS and peak output and different measurement and frequency ranges
- Ground insulated
- M12 socket for easy cable connection
- Protected against false polarization and overvoltage
- Double shielded case for best EMC properties
- Protection grade IP68
About the KSI84Ax Acceleration Sensor
The vibration sensors of the KSI84xx family are used to measure vibration acceleration, velocity or displacement on machines and objects. The sensors measure the vibration amplitude within a specified frequency range in axial sensor direction and outputs the measuring result as a 4-20 mA current loop signal. The sensor is supplied with power via the same signal line. The sensor parameters are adjustable. There are different types for different applications in several measuring ranges. The sensors comply with the specifications for vibration measuring devices according to ISO 2954.
Key Features
- Suited for direct connection to standard control and measurement equipment, e.g. PLCs or panel meters
- Particularly suited for applications at higher frequencies, e.g. bearing or gearbox monitoring and for shock vibration
- More than 200 types with with RMS and peak output and different measurement and frequency ranges
- Loop powered
- Ground insulated
- Compact and rugged design
- M12 socket for easy cable connection
- Protected against false polarization and overvoltage
- Double shielded case for best EMC properties
- Protection grade IP68
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Linear measuring range (error <2 %) | 1 (2(1)) .. 112,5 % (aN) |
| Lower frequency limit (hz) | 1,5 / 3 / 10 / 30 / 100 / 1000 |
| Measured quantity | KSI84AR-...: RMS of acceleration / KSI84AP-...: Peak value of acceleration |
| Nominal range (m/s²) | 10 / 20 / 50 / 100 / 200 / 500 ± 2 % |
| Operating temperature range (°c) | -40 .. 100 |
| Output | 4 .. 20 mA |
| Supply voltage (v) | 10 .. 30 |
| Upperfrequency limit (hz) | 100 / 300 / 1000 / 5000 / 10000 |
