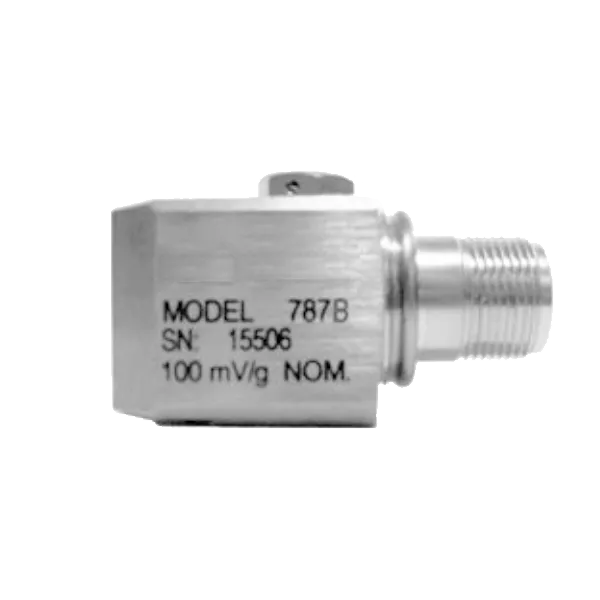

787B General Purpose Accelerometer
Side exit, general purpose, case isolated, MIL-C-5015 connector,100 mV/g, ±10% sensitivity tolerance
About the 787B General Purpose Accelerometer
Low profile, general purpose accelerometer
Key features 787B
- Corrosion resistant
- Hermetically sealed
- Ground isolated
- ESD protection
- Reverse wiring protection
- Mounts in any orientation
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Side exit |
| Connector style | MIL-C-5015, 2-pin |
| Frequency response | 0.7 Hz - 10,000 Hz |
| Full-scale range | 80 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | M8 captive hex head scerw with 0.046" diamter safety wire hole |
| Resonance frequency | 22 kHz |
| Sensitivity | 100 mV/g |
| Sensitivity tolerance | ±10 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | -50°C to +120°C |
| Weight | 145 grams |
