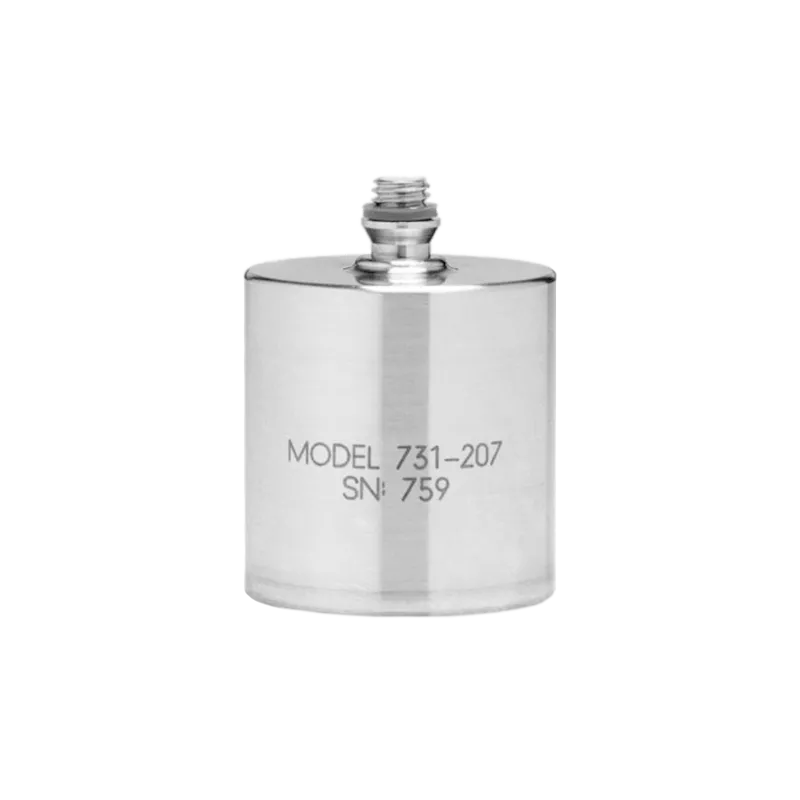

731-207 Low Frequency (Seismic) Vibration Sensors
Ultra low frequency seismic accelerometer
About the 731-207 Low Frequency (Seismic) Vibration Sensors
Top exit, compact seismic accelerometer, case grounded, 10-32 coaxial connector, 10 V/g
Key features 731-207
- Compact construction to fit in tight spaces
- Ultra-high sensitivity
- Ultra low-noise electronics for clear signals at very low vibration levels
- Reverse wiring protection
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Top exit |
| Connector style | 10-32 |
| Frequency response | 0.2 Hz - 1,300 Hz |
| Full-scale range | 0.5 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 10-32 tapped hole |
| Resonance frequency | 2.4 kHz |
| Sensitivity | 10 V/g |
| Sensitivity tolerance | ±10 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | 0°C to +80°C |
| Weight | 50 grams |
