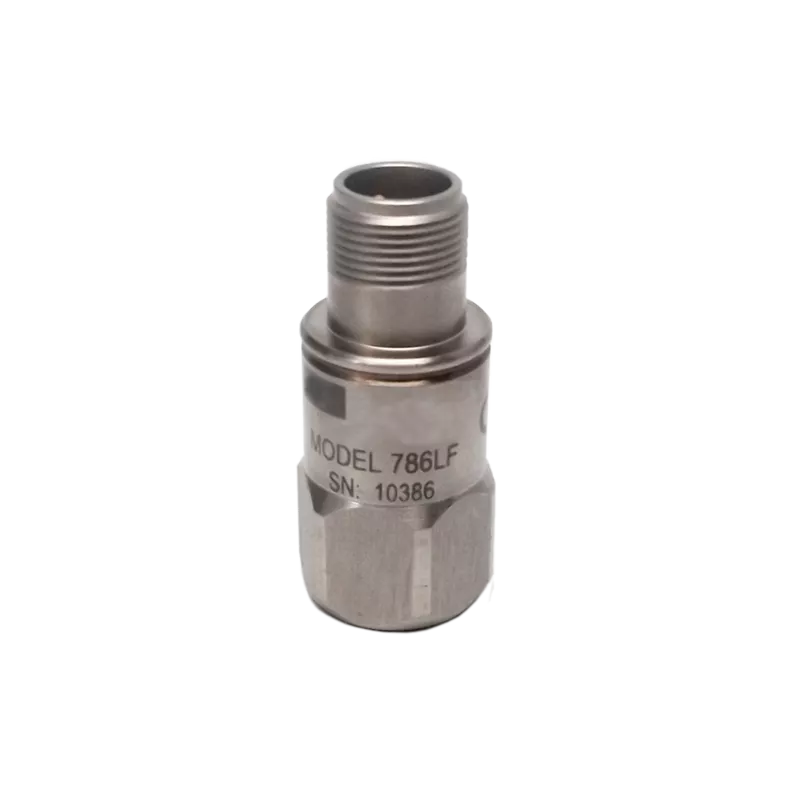

786LF Low Frequency (Seismic) Vibration Sensors
Top exit, extremely low frequency 0.1 Hz, MIL-C-5015 connector,case isolated, 100 mV/g, ±5% sensitivity tolerance
About the 786LF Low Frequency (Seismic) Vibration Sensors
786LF series delivers clear signals at low frequency, low vibration levels. The low frequency series has superior performance down to 0.1 Hz. The sensors are optimized with extended low-end frequency response and improved signal-to-noise ratio compared to other general purpose models. The sensors are designed with unique circuitry helping prevent washover distortion, a condition that can occur when both high amplitude, slow and fast frequencies are present. The 786LF series can be used for detecting vibration on slow turning machinery such as cooling tower fans and slow-speed gearboxes.
Key features 786LF
- High sensitivity
- Extended low end frequency response
- Clear signals at low vibration levels
- Low frequency performance
- Hermetically sealed
- ESD-protected
- Reverse wiring protection
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Top exit |
| Connector style | MIL-C-5015, 2-pin |
| Frequency response | 0.1 Hz - 13,000 Hz |
| Full-scale range | 50 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 1/4-28 UNF tapped hole |
| Resonance frequency | 30 kHz |
| Sensitivity | 100 mV/g |
| Sensitivity tolerance | ±5 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | -50°C to +120°C |
| Weight | 90 grams |
