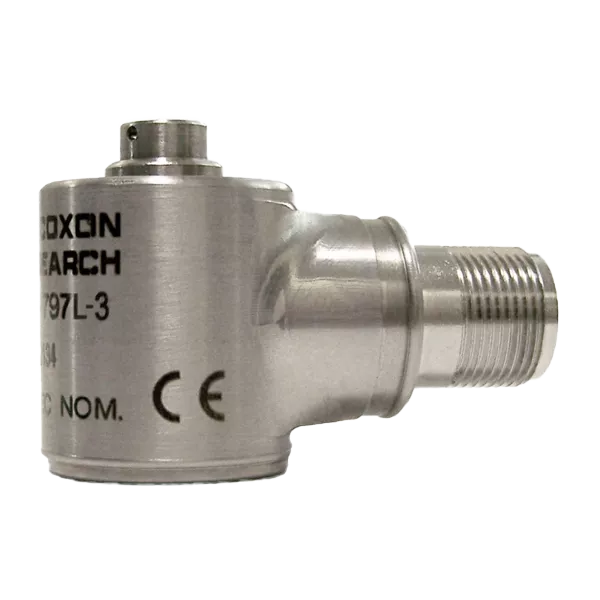

797L-3 Low Frequency (Seismic) Vibration Sensors
Side exit, 2-pin MIL-C-5015 connector, case isolated, 200 mV/g low frequency accelerometer
About the 797L-3 Low Frequency (Seismic) Vibration Sensors
Key features 797L-3
- High sensitivity
- Ultra low-noise electronics for clear signals at very low vibration levels
- Low frequency capable
- Hermetically sealed
- ESD protection
- Reverse wiring protection
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Side exit |
| Connector style | MIL-C-5015, 2-pin |
| Frequency response | 0.2 Hz - 5,000 Hz |
| Full-scale range | 25 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 1/4-28 captive screw |
| Resonance frequency | 18 kHz |
| Sensitivity | 200 mV/g |
| Sensitivity tolerance | ±5 % |
| Sensor output | Dynamic vibration (IEPE) Sensitivity 200 mV/g |
| Temperature range | -50°C to +120°C |
| Weight | 148 grams |
