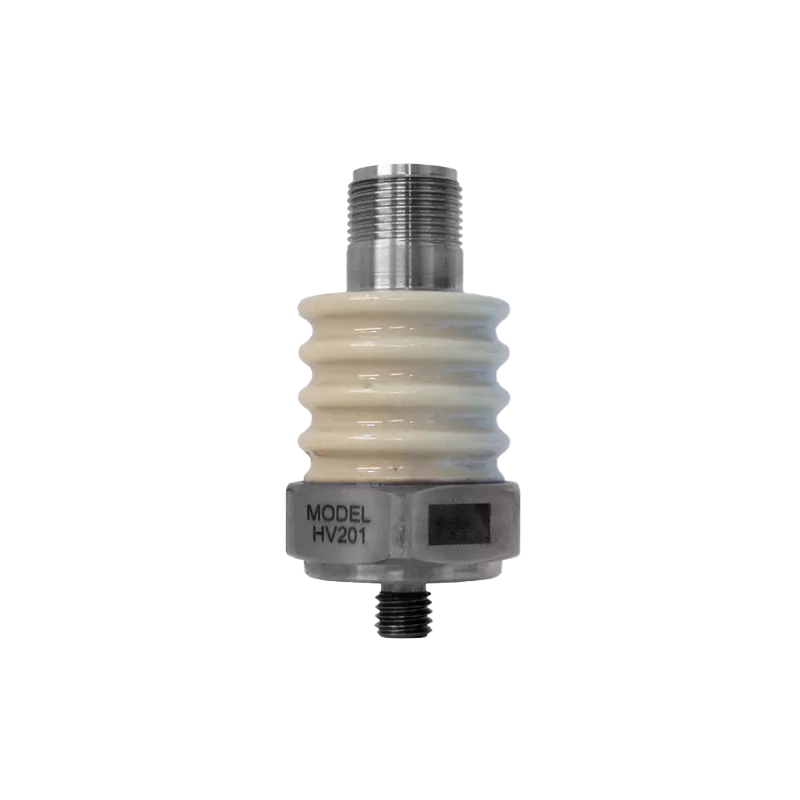

HV201LF-500 Low Frequency (Seismic) Vibration Sensors
Low frequency, high gain accelerometer with high voltage isolation
About the HV201LF-500 Low Frequency (Seismic) Vibration Sensors
HV series are innovative accelerometers designed for demanding applications requiring high electrical isolation between the sensor and machine. HV sensors are designed to withstand arcing between the sensor base and its internal electronics to levels as high as 6,000 volts. The sensors offer improved EMI-resistance in areas where high electromagnetic interference occurs such as wind turbines, railway systems and other high-voltage generators. The low frequency series has superior performance down to 0.1 Hz.
HV series sensors can pass a HiPot test of >6,000 volts from sensor electronics to mounting base. This high isolation prevents energy from arcing through the sensor offering better protection of the associated equipment. Improvements in EFT and ESD resistance improves survability during extreme transient events. The HV series come with a variety of mounting options to ensure compatibility with every application.
Key features HV201LF-500
- Ultra low frequency sensors
- Ideal for power generation applications
- Rapid shock recovery
- Hermetically sealed
- Case-base isolation min 6 kV
- EMI-protected
- Manufactured in an approved ISO 9001 facility
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Connector orientation | Top exit |
Connector style | MIL-C-5015, 2-pin |
Frequency response | 0.1 Hz - 11,000 Hz |
Full-scale range | 50 g peak |
Hazardous area approvals | Non-approved |
Mounting thread | M8 x 1.25 integral stud |
Resonance frequency | 28 kHz |
Sensitivity | 500 mV/g |
Sensitivity tolerance | ±5 % |
Sensor output | Dynamic vibration (IEPE) |
Temperature range | -50°C to +120°C |
Weight | 126 grams |
