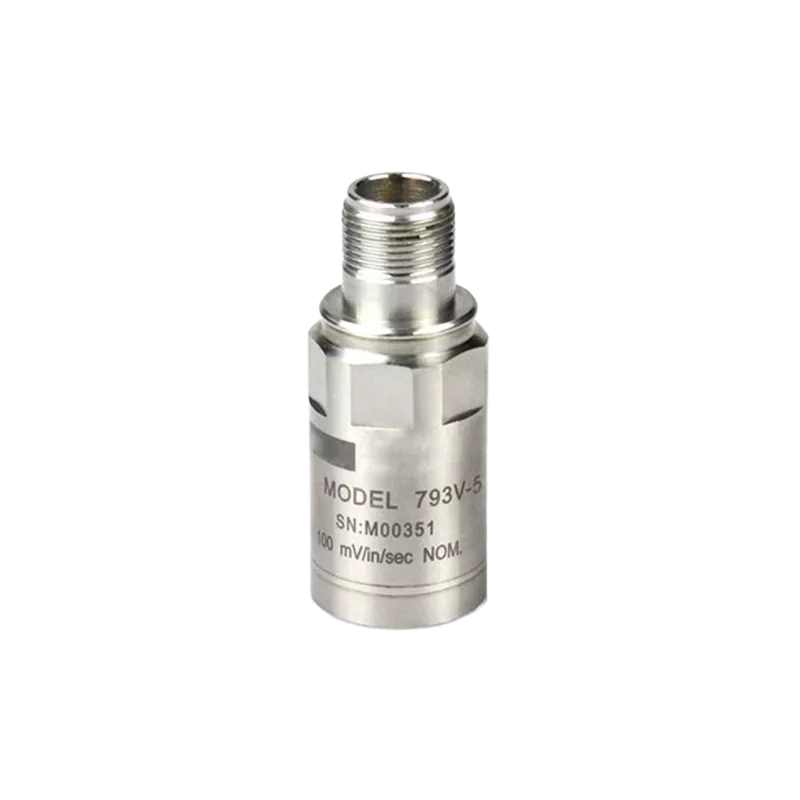

793V-5 PVT Velocity Vibration Sensors
Premium high sensitivity velocity sensor
About the 793V-5 PVT Velocity Vibration Sensors
Top exit, MIL-C-5015 2-pin connector, case isolated, 500 mV/inch/sec premium velocity sensor
Key features 793V-5 PVT
- Hermetic seal
- Corrosion resistant stainless steel case
- Reverse wiring protection
- Eliminates high frequency distortion
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Top exit |
| Connector style | MIL-C-5015, 2-pin |
| Frequency response | 5 Hz - 7,000 Hz |
| Full-scale range | 10 in/sec peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 1/4-28 tapped hole |
| Resonance frequency | 15 kHz |
| Sensitivity | 500 mV/in/sec |
| Sensitivity tolerance | ±10 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | -50°C to +120°C |
| Weight | 145 grams |
