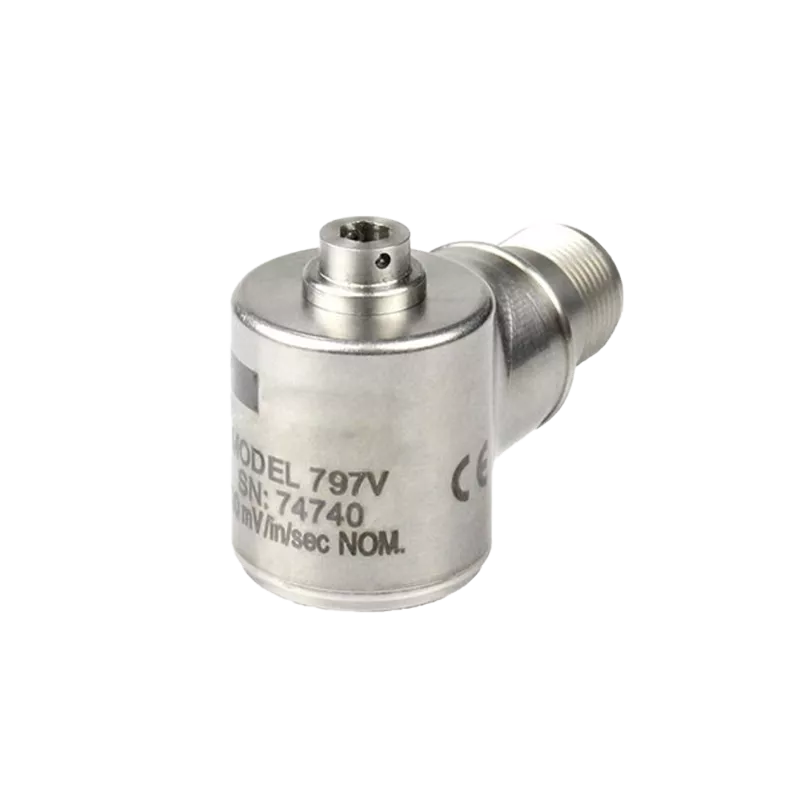

797V PVT Velocity Vibration Sensors
Premium accelerometer
About the 797V PVT Velocity Vibration Sensors
Side exit, premium, IsoRing case isolated, MIL-C-5015 connector, 100 mV/g, ±5% sensitivity tolerance
Key features 797V PVT
- Rugged design
- Internally integrated to velocity
- Eliminates distortion caused by high frequency signals
- Corrosion resistant
- ESD protection
- Reverse wiring protection
- Mounts in any orientation
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Side exit |
| Connector style | MIL-C-5015, 2-pin |
| Frequency response | 1 Hz - 12,000 Hz |
| Full-scale range | 80 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 1/4-28 captive socket head screw |
| Resonance frequency | 26 kHz |
| Sensitivity tolerance | ±5 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | -50°C to +120°C |
| Weight | 138 grams |
