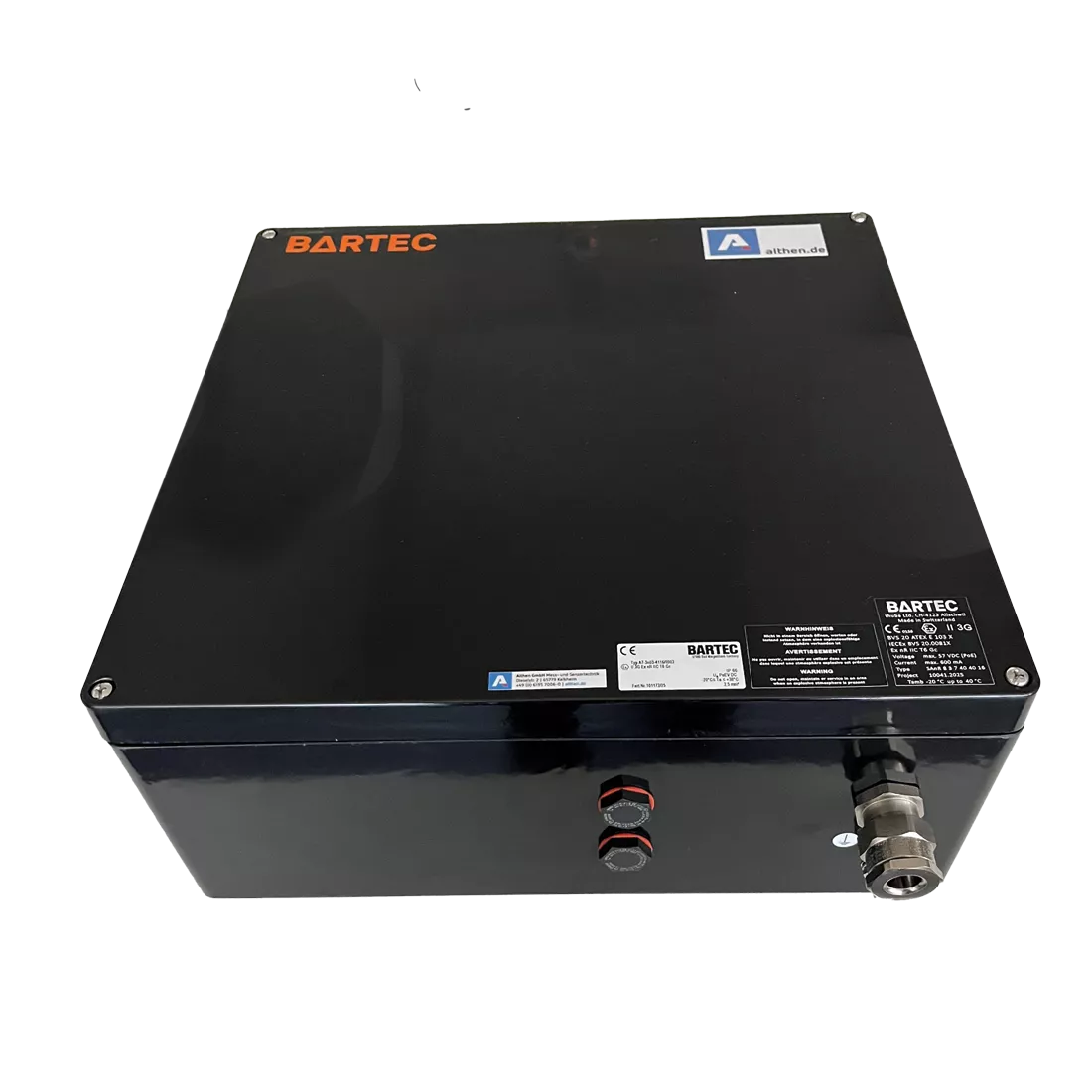

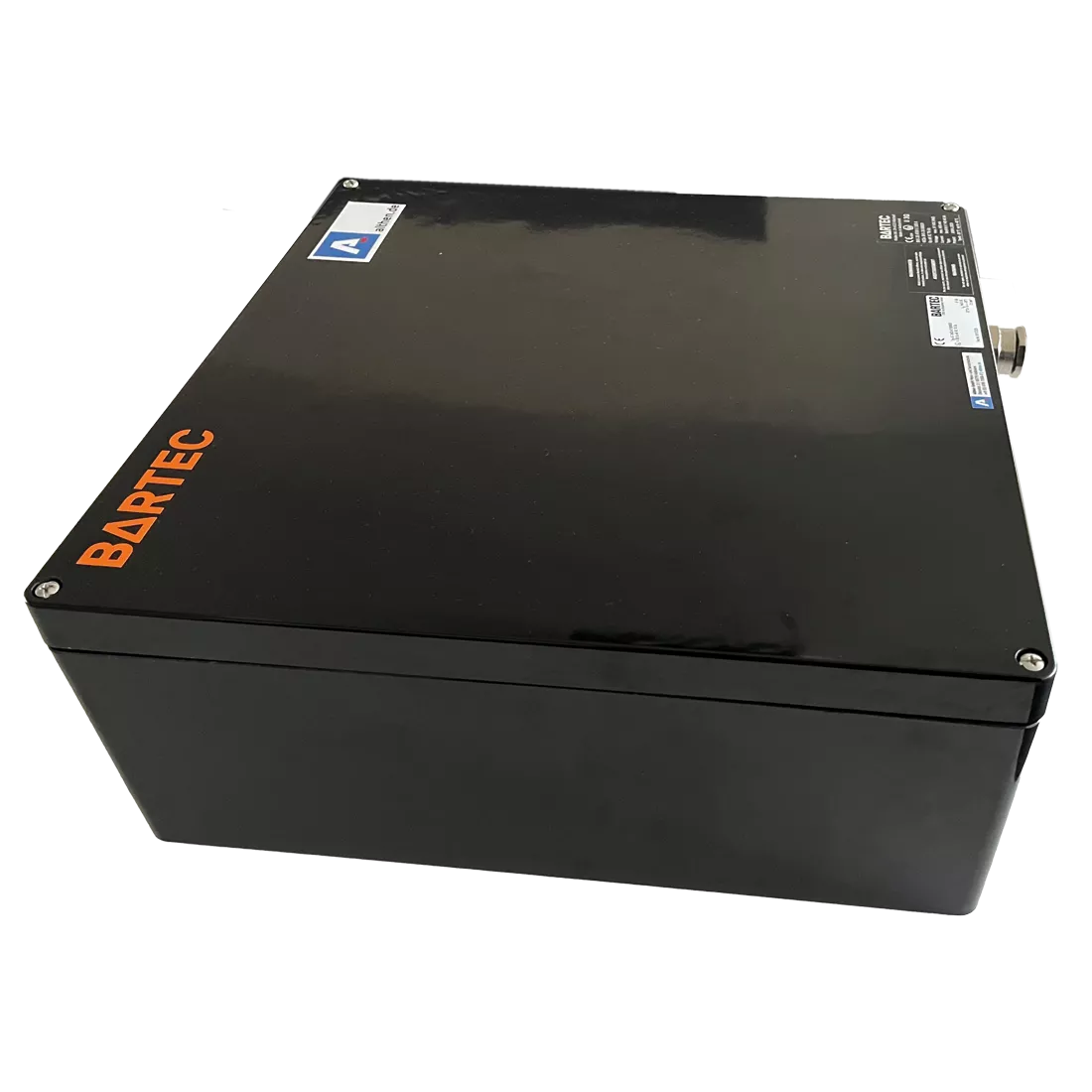

ATEX Enclosure for Industrial Gateway
Designed to protect the IIoT Gateway in outdoor or industrial indoor conditions of ATEX Zone 2
Key features
- nR’ tested polyester enclosure
- Resistant to chemicals
- Halogen-free, UV-resistant
- Seawater resistant
About the ATEX Enclosure for Industrial Gateway
The ATEX enclosure has been designed to protect the IIoT Gateway (model 1111) in outdoor or industrial indoor conditions. Enclosure includes gateway AC/DC power supply, DC cable and gateway holder, Ethernet plug.Class II design (no FG pin).
The enclosure is specially tested for Zone 2 in accordance with IEC/EN 60079-0 and IEC/EN 60079-15. The ignition protection type nR (vapour safety) covers Zone 2 and thus enables this special solution.
Ambient conditions
- Ambient temperature -20-50 °C
- Storage temperature -40-85 °C
- Relative humidity 20-90 %,
- noncondensing
- Flammability rating: UL 746C

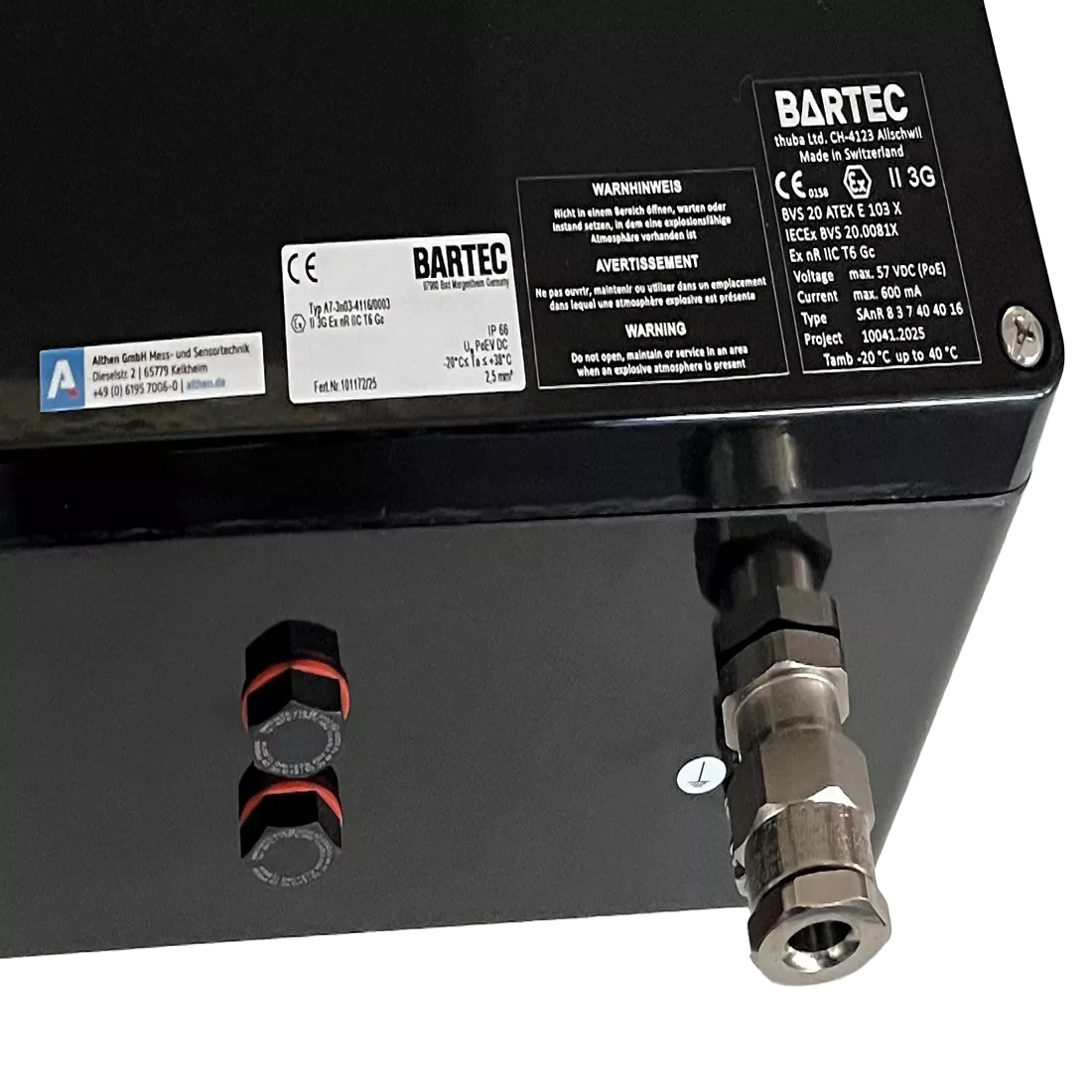

Labelling according to 2014/34/EU: Ex II 3G
Protection class (gas): Ex nR IIC T6 Gc
EU type examination certificate: BVS 20 ATEX E 103 X
International certificates: IECEx BVS 20.0081X
Mechanical specifications
- Degree of protection IP66 for enclosure
Protection class according to EN 60529 - Pressure equalizer plug
- Wall mounting
- Impact strength: IK08
- Color: black
- Enclosure material glass fibre reinforced polyester
- Connection technology via cable gland
- Power supply: 230V AC / 50 Hz
- Ethernet adapter: optional
Maintenance
Inspection and maintenance in accordance with IEC/EN 60079-17 for electrical systems (close-up inspection for damage).
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Labelling according to 2014/34/EU | Ex II 3G |
| Protection class (gas) | Ex nR IIC T6 Gc |
| EU type examination certificate | BVS 20 ATEX E 103 X |
| International certificates | IECEx BVS 20.0081X |
| Degree of protection to EN 60529 | IP66 |
| Enclosure material | glass fibre reinforced polyester |
| Max. permissible ambient temperature | -55 ˚C ≤ Tamb ≤ 100 ˚C (standard depending on the internal access point) |
| Connection technology | via cable gland |
| Power supply | 230V AC / 50 Hz |
| Ethernet adapter | optional |
