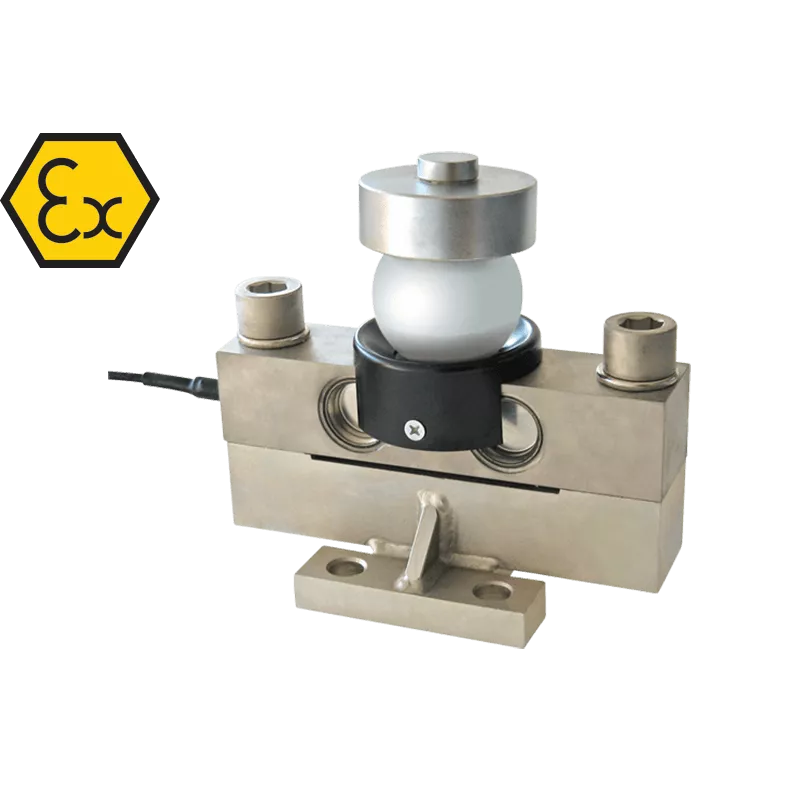

DTL Double Shear Beam Load Cell
Robust and accurate load cell for heavy-duty industrial weighing. Ideal for fixed structures in tough environments.
Key features
- Combined error ≤ ±0.02%
- IP68 protection for harsh environments
- Nominal load capacity of 25,000 kg
- AISI 4340 nickel-plated steel housing
- Wide operating temperature range: -35 °C to +65 °C
- ATEX, IECEx, FM, EAC, UKCA certifications on request
Performance highlights
The DTL double shear beam load cell offers high accuracy with a combined error of ≤ ±0.02% and a rated output of 2 mV/V. It's suitable for demanding weighing applications requiring long-term stability and durability.
Usage conditions
Designed with AISI 4340 nickel-plated steel and rated IP68, this load cell operates reliably in industrial environments exposed to moisture, dust, and extreme temperatures. Safe overload is up to 150% of full scale.
Possible applications
- Fixed industrial weighing platforms
- Silo and tank weighing systems
- Level measurement in process control
- Load monitoring in heavy-duty equipment
Advantages of choosing this product
This load cell’s precision, environmental protection, and optional certifications make it a versatile choice for a wide range of industrial measurement applications, including explosive atmospheres.
Other important features
- Minimum verification interval: Emax / 15000
- Temperature compensation range: -10 °C to +40 °C
- Cable: 20 m, shielded, 6 mm diameter
- Input/Output resistance: 700 Ω ±7
- Ultimate overload: 200%
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Material | AISI 4340 nickel-plated steel |
| Nominal load (E max) | 25,000 kg |
| Combined error | ≤ ±0.02% |
| Protection rating | IP68 |
| Rated output | 2 mV/V ±0.1% |
| Input/Output resistance | 700 Ω ±7 |
| Temperature effect on zero/span | 0.002% / °C |
| Operating temperature range | -35 °C to +65 °C |
| Compensated temperature range | -10 °C to +40 °C |
| Safe overload | 150% |
| Ultimate overload | 200% |
| Zero balance | ≤ ±1% |
| Insulation resistance | ≥ 5000 MΩ |
| Max supply voltage | 18 V |
| Deflection at nominal load | 0.6 mm |
| Cable length | 20 m |
