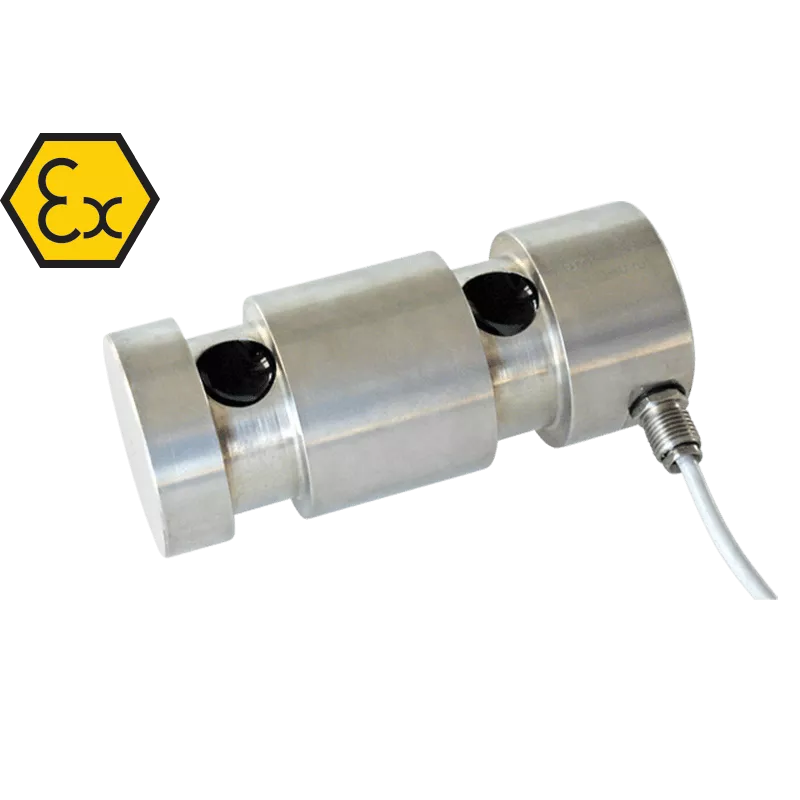

LAU Pin load cell
Heavy-duty stainless steel pin load cell for reliable force measurement in lifting, structural, and safety-critical applications.
Key features
- 17-4 PH stainless steel construction
- Combined error ≤ ±0.1%
- IP67 protection rating
- Capacities from 5000 kg to 20000 kg
- OIML R60 compliant design
Performance highlights
The LAU pin load cell is designed for robust force measurement where mechanical strength and reliability are critical. With a combined error of ≤ ±0.1%, it delivers stable measurements in high-load applications.
Usage conditions
Its stainless steel housing and IP67 protection make the LAU suitable for industrial and outdoor use. The load cell operates across a wide temperature range and withstands high overload levels, ensuring safe operation in demanding environments.
Possible applications
- Crane and hoist load monitoring
- Structural load measurement
- Heavy machinery and lifting equipment
- Safety and overload protection systems
- OEM force measurement solutions
Advantages of choosing this product
The LAU pin load cell combines a compact pin-type design with high mechanical strength. Compliance with OIML R60 and availability of ATEX and IECEx options make it suitable for regulated and hazardous-area installations.
Other important features
- Optional dual redundant strain gauge bridges for safety systems
- High ultimate overload capacity
- Simple mechanical integration as a load-bearing pin
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Combined error | ≤±0.1% |
| Compensated temperature range | -10 °C / +50 °C |
| Creep at nominal load in 30 minutes | 0.03% |
| Deflection at nominal load | 0.4 mm |
| Input resistance | 350 Ω ±20 |
| Insulation resistance | >5000 MΩ |
| Material | 17-4 PH stainless steel |
| Max supply voltage without damage | 15 V |
| Nominal load (e max) | 5000 - 10000 - 20000 kg |
| Operating temperature range | -20 °C / +70 °C |
| Output resistance | 350 Ω ±5 |
| Protection class | IP67 |
| Rated output | 1 mV/V ±0.1% |
| Safe overload (% of full scale) | 150% |
| Temperature effect on span | 0.005% °C |
| Temperature effect on zero | 0.005% °C |
| Ultimate overload (% of full scale) | 400% |
| Zero balance | ±1% |
