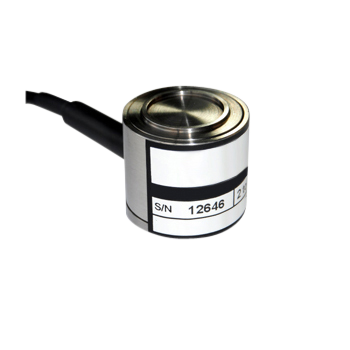

ALF216 Miniature load cell
Compact cylindrical miniature load cell for accurate compression force measurement in confined installation spaces. The ALF216 is ideal for OEM machinery, industrial automation and retrofit applications where reliable force measurement is essential.
Key features
- Compact cylindrical load cell
- Measurement ranges from 5 kN to 40 kN
- Stainless steel construction with IP65 protection
- High repeatability of ±0.02% RL
- Easy integration into existing machinery
- Optional 1.0 mV/V rationalised output
Compact miniature load cell for precise compression force measurement
The ALF216 miniature load cell is designed for accurate compression force measurement in applications where installation space is limited. Its compact cylindrical design allows easy integration into existing machinery without extensive mechanical modifications.
This miniature load cell delivers reliable and repeatable measurement results, making it an excellent choice for OEM equipment, industrial automation, test systems and production machinery.
Performance highlights
The ALF216 is available in 5 kN, 10 kN, 20 kN and 40 kN measurement ranges. It combines excellent measurement accuracy with outstanding repeatability and a robust stainless steel construction. The IP65 protection rating ensures reliable operation in demanding industrial environments.
Its compact dimensions make it an ideal alternative where conventional load cells are too large.
Usage conditions
For optimum measurement accuracy, the load must be applied centrally through the loading axis. The load cell is specifically designed for compression force measurement and is supplied with a 2 m screened PVC cable for straightforward installation.
The operating temperature range of -10°C to +80°C makes it suitable for a wide variety of industrial applications.
Possible applications
- Industrial presses
- Printing machinery
- Production equipment
- OEM machinery
- Material testing
- Process force monitoring
- Industrial automation
- Assembly equipment
Advantages of choosing the ALF216
The ALF216 combines a compact footprint with high measurement accuracy and long-term reliability. It is an excellent solution for machine builders and design engineers looking for a miniature load cell that is easy to install while delivering dependable performance throughout its service life.
Its stainless steel construction ensures durability, while the compact design simplifies machine integration.
Other important features
- Cylindrical compression load cell
- Nominal output of 1.2 mV/V
- Optional rationalised 1.0 mV/V output
- 700 Ω bridge resistance
- Safe overload up to 150%
- Ultimate overload up to 400%
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 700 Ω |
| Creep - 20 minutes | ±0.05% AL |
| Excitation voltage - maximum | 20V |
| Excitation voltage - recommended | 10V |
| Hysteresis | ±0.5% RL |
| Insulation resistance - minimum at 50vdc | 500 MΩ |
| Load direction | Compression |
| Measurement range | 500kg, 1000kg, 2000kg, 4000kg |
| Non-linearity - terminal | ±0.5% RL |
| Overload - safe | 50% RL |
| Overload - ultimate | 400% RL |
| Rated output - nominal | 1.2mV/V |
| Rated output - rationalised | 1.0mV/V |
| Rationalisation tolerance | ±0.5% RL |
| Repeatability | ±0.02% RL |
| Sealing | IP65 |
| Temperature effect on rated output per °c | ±0.005% AL |
| Temperature effect on zero load output per °c | ±0.03% RL |
| Temperature range - compensated | -10 to +50°C |
| Temperature range - safe | -10 to +80°C |
| Zero load output | ±4% RL |
