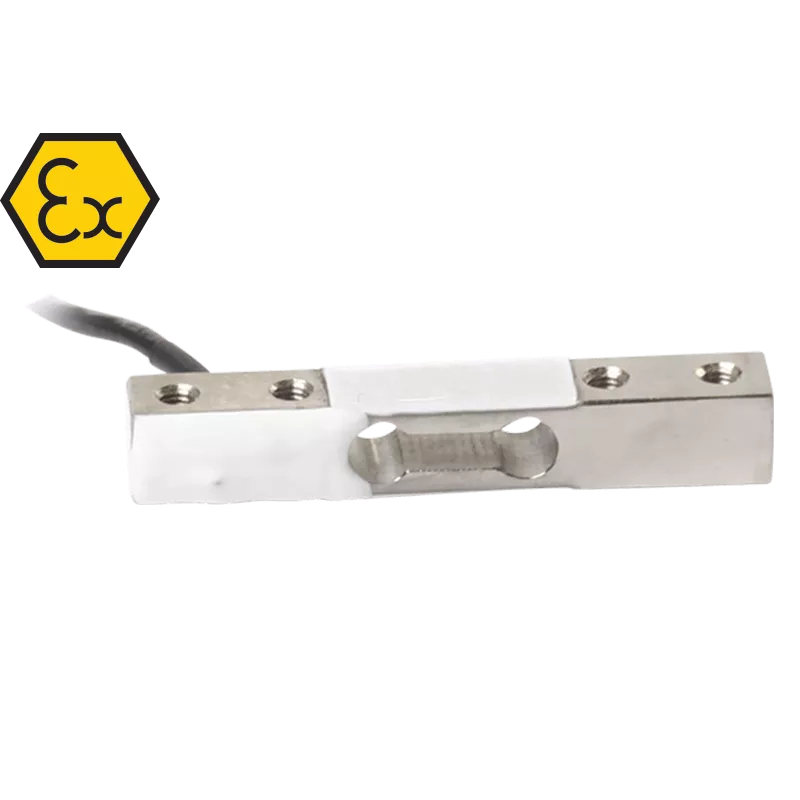

AF Single point load cell
Compact load cell for small weighing platforms where stability, repeatability and easy integration matter.
Key features
- Stainless steel housing
- Combined error ≤ ±0.05%
- IP65 protection class
- Rated output 3 mV/V
- Wide compensated temperature range
- Safe overload up to 150%
General Information AF Single point load cell
The AF single point load cell delivers stable and repeatable performance for compact weighing platforms up to 150 × 150 mm. It provides a precise output signal with low combined error and stable zero tracking, even under changing temperature conditions. The stainless steel body increases long term reliability in industrial environments.
Usage conditions
The load cell performs reliably between -20 °C and +60 °C, with a compensated range from -10 °C to +40 °C. It withstands safe overloads up to 150% of full scale and ultimate overloads up to 200%, making it suitable for light industrial applications that require robust performance.
Possible applications
- Small weighing platforms
- Bench scales
- Compact process weighing systems
- Packaging and filling equipment
- Small OEM measurement modules
Advantages of choosing this product
Its stainless steel construction, wide temperature stability and low combined error make this load cell a dependable choice for modern weighing systems. The AF model offers a strong balance between accuracy and durability while remaining compact for easy integration into small platforms.
Other important features
- Protection class IP65
- Input resistance 410 Ω
- Output resistance 350 Ω
- Zero balance ±2%
- Creep at nominal load 0.05%
- Cable length 3 m with shield
- Tightening torque 4.5–6 Nm depending on screw class
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Compensated temperature range | -10 °C / +40 °C |
| Creep at nominal load in 30 minutes | 0.05% |
| Deflection at nominal load | 0.5 mm |
| Input resistance | 410 Ω ±40 |
| Insulation resistance | >2000 MΩ |
| Max supply voltage without damage | 10 V |
| Measurement range | 5, 15, 50kg |
| Operating temperature range | -20 °C / +60 °C |
| Output resistance | 350 Ω ±5 |
| Rated output | 3 mV/V ±10% |
| Safe overload (% of full scale) | 150% |
| Temperature effect on span | 0.005% °C |
| Temperature effect on zero | 0.005% °C |
| Ultimate overload (% of full scale) | 200% |
| Zero balance | 0-4% |
