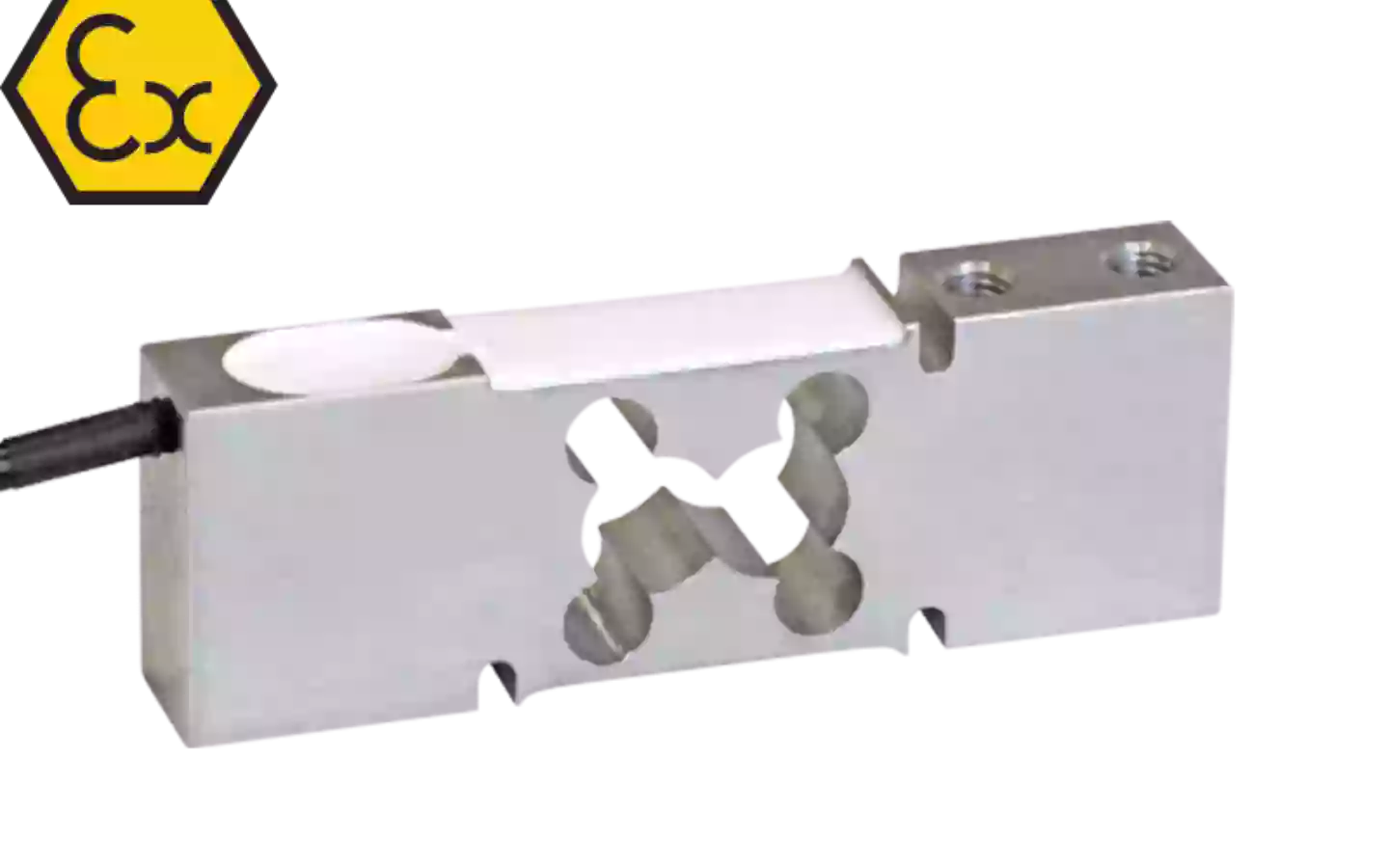

PTC Single-point load cel
Compact and high-precision single-point load cell for platform scales up to 400x400 mm, ideal for OEM integration and harsh environments.
Key features
- AISI 420 stainless steel construction
- Extremely low combined error ≤ ±0.02%
- IP67 protection rating for harsh environments
- Designed for 400x400 mm platforms
- Wide capacity range: 30 kg to 150 kg
- OIML R60 certified
Performance highlights
The PTC Single-point load cell offers high accuracy and stability thanks to its low combined error of ≤ ±0.02% and a rated output of 2 mV/V ±10%. It supports capacities from 30 kg up to 150 kg and ensures consistent measurements across a 400x400 mm platform area.
Usage conditions
Built from AISI 420 stainless steel, this load cell is robust and corrosion-resistant. It operates in a wide temperature range from -20 °C to +60 °C and meets IP67 protection standards, making it suitable for industrial and outdoor weighing applications.
Possible applications
- Platform scales (up to 400x400 mm)
- Packaging machines
- Checkweighers
- Process automation systems
- Industrial OEM weighing integrations
Advantages of choosing this product
The PTC combines compact size with outstanding precision and ruggedness. Its compliance with OIML R60 ensures reliability in legal-for-trade applications, while optional ATEX and IECEx certifications enable safe use in explosive environments.
Other important features:
- Safe overload: 150% of full scale
- Ultimate overload: 300% of full scale
- Creep (30 min): ≤ 0.02%
- Tight deflection at nominal load: 0.3 mm
- Calibration report and EX certifications available on request
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Combined error | ≤±0.02% |
| Compensated temperature range | -10 °C / +40 °C |
| Creep at nominal load in 30 minutes | 0.02% |
| Deflection at nominal load | 0.3 mm |
| Input resistance | 385 Ω ±30 |
| Insulation resistance | >5000 MΩ |
| Material | AISI 420 stainless steel |
| Max supply voltage without damage | 15 V |
| Nominal load (eₘₐₓ) | 30 - 50 - 75 - 100 - 150 kg |
| Operating temperature range | -20 °C / +60 °C |
| Output resistance | 350 Ω ±5 |
| Protection class | IP67 |
| Rated output | 2 mV/V ±10% |
| Safe overload (% of full scale) | 150% |
| Temperature effect on span | 0.002% °C |
| Temperature effect on zero | 0.002% °C |
| Ultimate overload (% of full scale) | 300% |
| Zero balance | ±1% |
