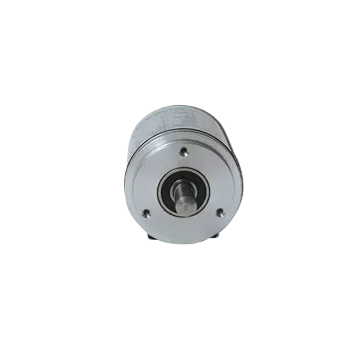

MEM Single-turn Absolute Rotary Encoder
Reaches high acceleration and speed values thanks to its innovative electronic construction technology
Nyckelfunktioner
- SSI serial output
- Different configurations available
- Metal case
- Series MEM single & multi-turn 30 µs typical monoflop time
- Series MEM-V single-turn 16 µs typical monoflop time
- High resolution, Binary or Gray code
About the MEM/MEM-V Single-turn Absolute Rotary Encoder
Available with a wide array of mechanical solutions, absolute encoders series MRE52, MRE54 and MRE62 grant
high resolutions (8, 9, 10, 12 or 13 bits). The different output signals (serial or parallel) and voltage supplies
allow to couple them to any counting system or PLC.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Accuracy | ±1/2 LSB |
| Case | Aluminium |
| Code | Binary or Gray |
| Connections | Axial or radial cable 1 m lg or axial/radial 12-pin Connei connector |
| Emitted interference | EN61000-6-4 |
| I max parallel outputs | 50 mA |
| Inertia | 25 g cm2 |
| Interference immunity | EN61000-6-2 |
| Joint hole Ø | 8, 10, 12, 14, 15 mm |
| Max. load | 80 N axial / 1000 N radial |
| Output signals | SSI serial (RS422) |
| Power consumption | 1.2 W |
| Resolutions/minute | 6000 |
| Shaft | 6, 8, 9.52 or 10 mm 11 mm |
| Shaft | Stainless steel |
| Shock resistance (11 ms) | 50 G |
| Ssi clock max. frequency | 1 MHz |
| Starting torque | 0.8 Ncm |
| Steps/resolution | 2÷15 bit (4÷32768) |
| Storage temp. | -30 ÷ +85°C |
| Supply voltage | 5 ÷ 28 Vdc Protection against polarity reversal |
| Vibrations resistance (10÷2000 hz) | 100 m/sec2 |
| Weight | Between ca. 400 en 500 g |
