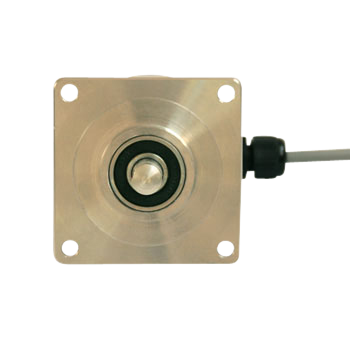

E620 Incremental Rotary Encoder
Square flange series
Nyckelfunktioner
- Pulses per revolution: 2 - 36000
- Shaft diameter 6 - 8 - 9.52 - 10 mm
- Protection degree IP64 (optional IP65)
- Operating temp. -10 - +70ºC
- E620, 63.5 x 63.5 mm square flange
- Centering mask Ø 31.75 mm
E620 / E621 - Incremental Rotary Encoders
Incremental rotary encoders with or without zero pulse, square flanged, compatible with the international standardized series SIZE25, or with centering mask diameter 50 mm (series E650/651) . The construction technology, together with the compact and innovating electronic specifications, allow to achieve high performances at a contained price level.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Case | E620 ABS self-extinguishing / RE620 aluminium |
| Connection outlets | Axial or radial connector type MS 7p (10p for line driver output) / Axial or radial cable 3 m long (1 m for line driver output) |
| Current consumption | 30÷80 mA |
| Electronic output | Push-pull, line-driver, open collector NPN, pull-up resistor NPN. Protection against short circuits |
| Inertia | 25 g cm |
| Max frequency | 100/200 KHz |
| Max load | 80 N axial - 100 N radial |
| Output signals | Two square waves 90°±15° out of phase. Zero pulse 90°±15° wide |
| Resolutions per minute | 6000* continuous / 10000 temporary *(Max operating speed with IP65) sealing ring applied on the shaft: 3000rpm |
| Shaft | Stainless Steel AISI 303 |
| Shock resistance (11ms) | 50 G |
| Starting torque | 0.8 Ncm |
| Stocking temp. | -20 ÷ 80ºC |
| Supply | 10÷24 Vdc or 5 Vdc±5%. Protection against polarity reversal |
| Vibration resistance (10÷2000 hz) | 100 m/sec |
| Weight | E620 - 320 g / RE620 - 440 g |
| Zero reference pulse | 1 pulse each resolution |
