  4. Vinkelenkoders
  5. REC Incremental Rotary Encoder

REC Incremental Rotary Encoder

Compact sized encoder fit to any application where short body dimensions are required

Se tekniska specifikationer

Nyckelfunktioner

  • Pulses per revolution: 2 to 12500
  • Body length, 38 mm
  • Aluminium case
  • M12 connector outlet
  • IP64 Protection degree

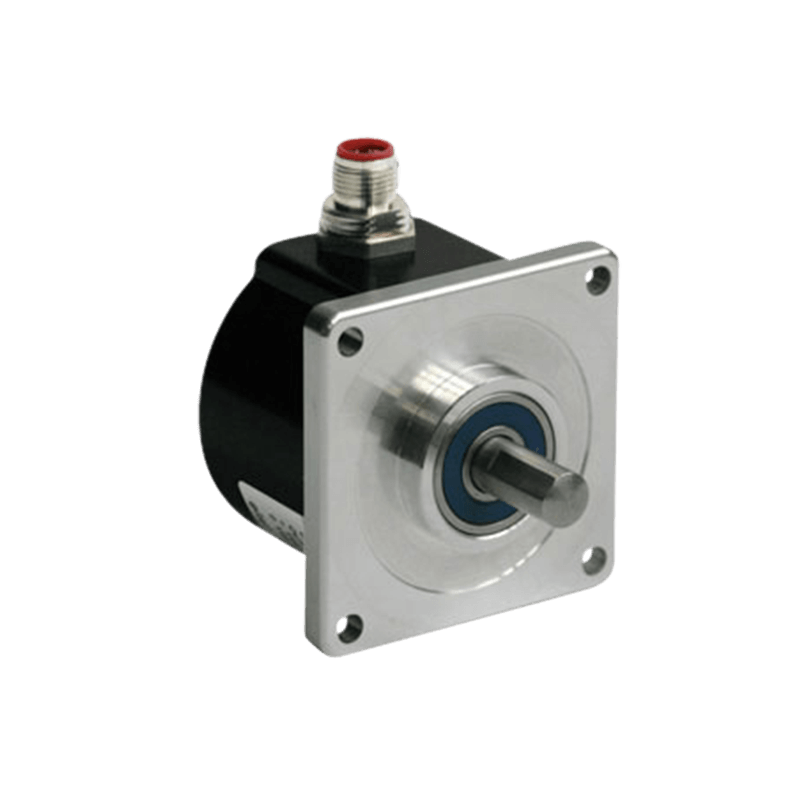

REC - Incremental rotary encoders

Compact sized encoders series REC fit to any application where short body dimensions are required - the case length only measures 38 mm. REC encoders are available with different mechanical versions: with round flange and servo copling (type REC520/REC540), square flange (REC620) or hollow shaft, with (REC450) or without elastic support (REC440).

The case is out of strong aluminium and connections are ensured by the connector type M12.
The pulses per revolution number ranges from 2 to 12500.

Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Begär en offert

  • Snabb respons från en teknisk försäljningsingenjör
  • Skräddarsytt erbjudande
  • Kostnadsfri teknisk rådgivning

REC Incremental Rotary Encoder

 Prata med en expert

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
Absorption 30÷80 mA max
Case length 38 mm
Case material Aluminium
Connections Radial cable 1 m long, 5-pin M12 radial plug connector, 8-pin connector for line driver output, Optional: tap connector with cable
Electronic output Push-pull, line driver 5Vdc or 8/24Vdc signals protected against short circuits
Inertia ≤25 g cm2
Max. frequency 100 KHz
Operating temperature -10 ÷ 70°C
Output signals Two square waves 90° ±15° out of phase – Zero pulse width: 90°±15°
Protection degree IP64
Pulse code Incremental
Pulses/revolution 2 ÷ 12500
Revolutions/minute 6000 continuos/10000 temporary
Shaft material Steel AISI 303
Shaft/joint hole Ø mm 10, 9.52, 8, 6 | 8, 10, 12, 14, 15
Shock resistance (11 ms) 50 G
Starting torque ≤0.8 Ncm
Stocking temperature -20 ÷ 80°C
Supply voltage 5Vdc or 8/24Vdc protection against polarity reversal
Weight 210 g circa
Zero pulse One pulse/revolution (REC521/541/621/REC441/451)
