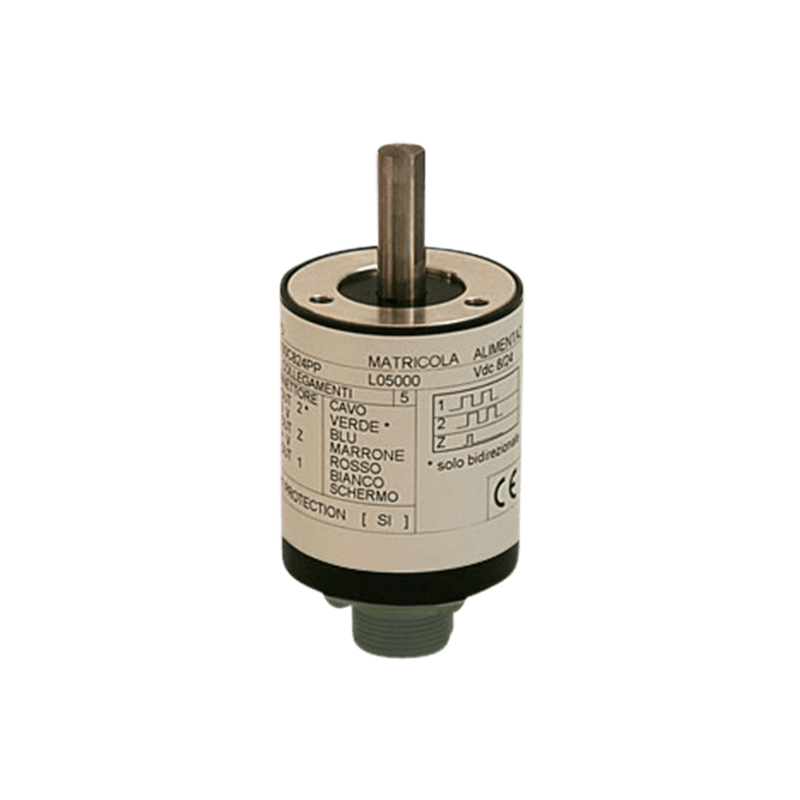

SEB/SEB-Z Incremental Rotary Encoder
Can be employed in severe conditions
Nyckelfunktioner
- Pulses per revolution: 2 - 12500
- Protection degree: IP 64 (optional IP65)
- Operating temp.: 0 ÷ +60ºC
- 50 mm Ø round flange
- Ø 10 mm shaft
- Output signals: multiple
SE/SEB/SEB-Z - Incremental rotary encoders
Incremental rotary encoders, monodirectional (SE) or bidirectional (SEB), with (SEB-Z) or without zero pulse.
Accurate and reliable, their stout mechanical features make them fit to applications even in very harsh conditions.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Absorption | 30÷80 mA max |
| Case material | ABS |
| Connections | Axial cable 3 m long/ 1 m for line driver output MS 5-pin axial connector/ 7-pin connector for line driver output equipped with flying part |
| Electronic output | Push-pull, open collector NPN, line driver 5Vdc o 8/24Vdc signals protected against short circuits |
| Inertia | ≤25 g cm2 |
| Max load | 80 N axial/100 N radial |
| Max. frequency | 100 KHz |
| Operating temperature | -10 ÷ 70°C |
| Output signals | Two square waves 90° ±15° out of phase – Zero pulse width: 90°±15° |
| Protection degree | IP64 |
| Pulse code | Incremental |
| Pulses/revolution | 2 to 12500 series SEBM/SEBZ-M: 8 to 2048 |
| Revolutions/minute | 6000 continuos/10000 temporary |
| Shaft material | Steel AISI 303 |
| Shaft Ø | 10 mm |
| Shock resistance (11 ms) | 50 G |
| Starting torque | ≤0.8 Ncm |
| Stocking temperature | -20 ÷ 80°C |
| Supply voltage | 5Vdc ro 8/24Vdc series SEBM/SEBZ-M: 5/24 Vdc protection against polarity reversal |
| Vibration resistance (10÷2000 hz) | 100 m/sec2 |
| Weight | 100 g ca. |
| Zero pulse | One pulse/revolution (SEBZ-SEBM-Z) |
