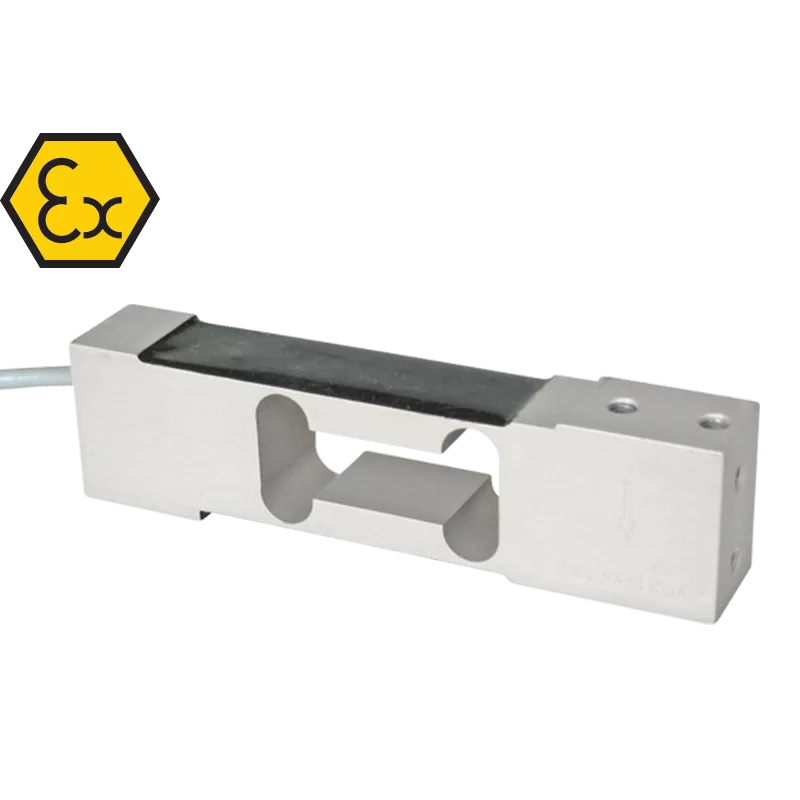

AZL Single Point Load Cell
For platforms 400 x 400mm
Nyckelfunktioner
- Range: 10 to 100kg
- Aluminium alloy loadcell
- Combined error < +/- 0.02% (0.017% C4)
- Protection class IP65
- Accuracy class C3 (OIML R60)
- AZL 15, 20, 30, 50: Class C3/C4
General information
The AZL platform load cell is suitable for series use in weighing and batching systems, level measurement equipment and general force measurement systems where accurate measurements are required at low cost.
Features
- Measuring range: 10 to 100kg
- Aluminum alloy
- Combined error: < ±0.02% (0.017% C4)
- Protection class: IP65
- Accuracy class C3 (OIML R60)
- AZL 15, 20, 30, 50: Class C3/C4
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Combined error | ≤±0.02% | ≤±0.017% |
| Compensated temperature range | -10 °C / +40 °C |
| Creep at nominal load in 30 minutes | 0.02% |
| Deflection at nominal load | 0.5 mm |
| Input resistance | 409 Ω ±6 |
| Insulation resistance | ≥5000 MΩ |
| Material | Aluminum alloy |
| Max supply voltage without damage | 18 V |
| Minimum verification interval (vₘᵢₙ) | Eₘₐₓ / 12000 | Eₘₐₓ / 15000 |
| Nominal load (eₘₐₓ) | 10 - 15 - 20 - 30 - 50 - 100 kg | 15 - 20 - 30 - 50 kg |
| Oiml r60 accuracy class • verification intervals | C3 • 3000 | C4 • 4000 |
| Operating temperature range | -35 °C / +65 °C |
| Output resistance | 350 Ω ±3 |
| Protection class | IP65 |
| Rated output | 2 mV/V ±10% |
| Safe overload (% of full scale) | 150% |
| Temperature effect on span | 0.0014% °C |
| Temperature effect on zero | 0.0017% °C |
| Ultimate overload (% of full scale) | 300% |
| Zero balance | ≤±1% |
