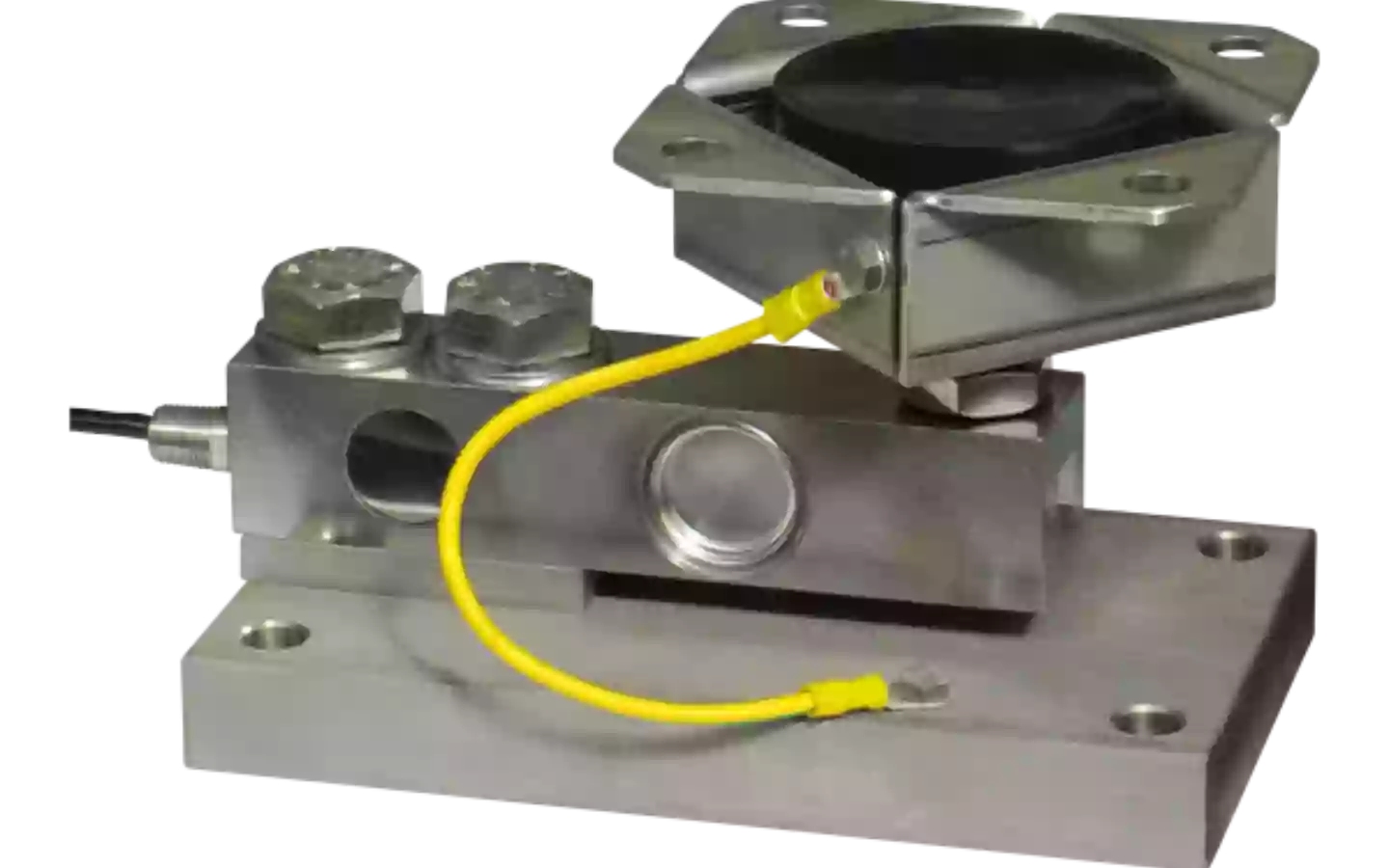

PV80 / PV80Z Mounting Kit for Loadcells
Designed for rollers, platforms, tanks, hoppers and more
Nyckelfunktioner
- Range: 3000 to 5000kg
- For loadcells FTP, FTK, FTZ
- Misalignment compensation of the support plates structure.
- Adjustable height.
- Locking screw to avoid damage during transport and installation.
Other features PV80/PV80Z Mounting Kit
- Adjustable upper plate in AISI 304 stainless steel (PPV).
- Lower plate and block in (PV80) AISI 304 stainless steel or (PV80Z) galvanized steel.
- Constraint against lateral forces and anti-tilt by in stainless steel self-centering joint foot.
Applications for PV80/PV80Z
Mounting kit designed for rollers, platforms, tanks, hoppers, etc..; provided with a stainless steel self-centering joint foot, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates.
Max static load 5000 kg.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertRelaterade produkter
