ASI 1xVIB Beschleunigungs- und Temperatursensor
Beschleunigungs- und Temperatursensor mit 10 kHz Bandbreite für die Überwachung des Betriebszustands von Maschinen
About the ASI 1xVIB

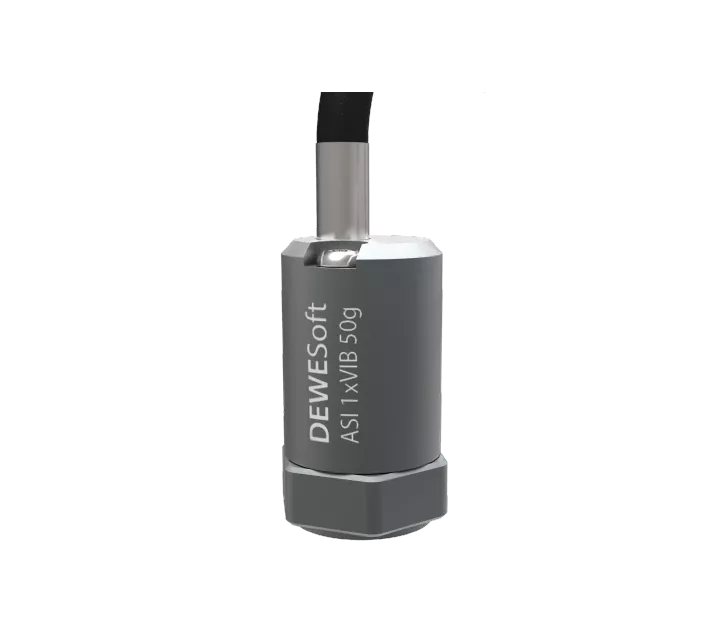

DEWESoft ASI 1xVIB 50g is a vibration and temperature measurement probe. Packaged in a small aluminium housing it consists of three sensors: a) single axis accelerometer with 0-10 kHz bandwidth and analog voltage output, b) temperature sensors with I2C interface and c) low-speed triaxial accelerometer with I2C interface. The probe is rated with IP67 ingress protection and -20 to 85 degC temperature range.
Key features
• 0-10 kHz bandwidth, 50 g range, 25 μg√Hz noise density
• Embedded temperature sensor
• Fits to DEWESoft IOLOITEd 2xASI EtherCAT interface
Applications
• Production robot condition monitoring
• Machine condition monitoring
• Bearing fault detection
Benötigen Sie dieses Produkt für Ihr Projekt?
Fordern Sie jetzt ein unverbindliches Angebot an oder senden Sie uns Ihre Kontaktdaten für eine unverbindliche und kostenfreie Beratung. Unsere Vertriebsingenieure setzen sich so schnell wie möglich mit Ihnen in Verbindung.
Produkt Downloads
Sprechen Sie mit unseren Experten
Nicht das richtige Produkt? Wir bieten Standard-Sensoren, helfen Ihnen aber auch gerne mit einem maßgeschneiderten Aufnehmer oder einer kompletten Messlösung weiter. Kontaktieren Sie uns einfach für eine kostenlose Beratung oder einen Kostenvoranschlag.
KontaktTechnische Spezifikationen
Spezifikationen | Wert |
---|---|
0g offset error (-40...125 degc) | 5 g |
Bandwidth (+-10%) | 0-10 kHz |
Cable length | 2 m |
Connector | M8, 8 pin, male |
Crossaxis sensitivity | Min. -1 % / Max. +1 % |
Housing material | Aluminium, hard anodized |
Ip rating | IP66 |
Linearity error | 0.1 % FS |
Measurement range | 50g |
Mounting type | Vertical, M6 thread |
Noise (10-1000 hz) | 1 mg rms |
Noise (10-10000 hz) | 3 mg rms |
Nominal sensitivity | 40 mV/g |
Operating temperature | 20 ... 85 degC |
Sensitivity change due to temperature (0...85 degc) | +-2 % |
Sensor module weight | 40 gram |
Supply voltage | 5 V |
