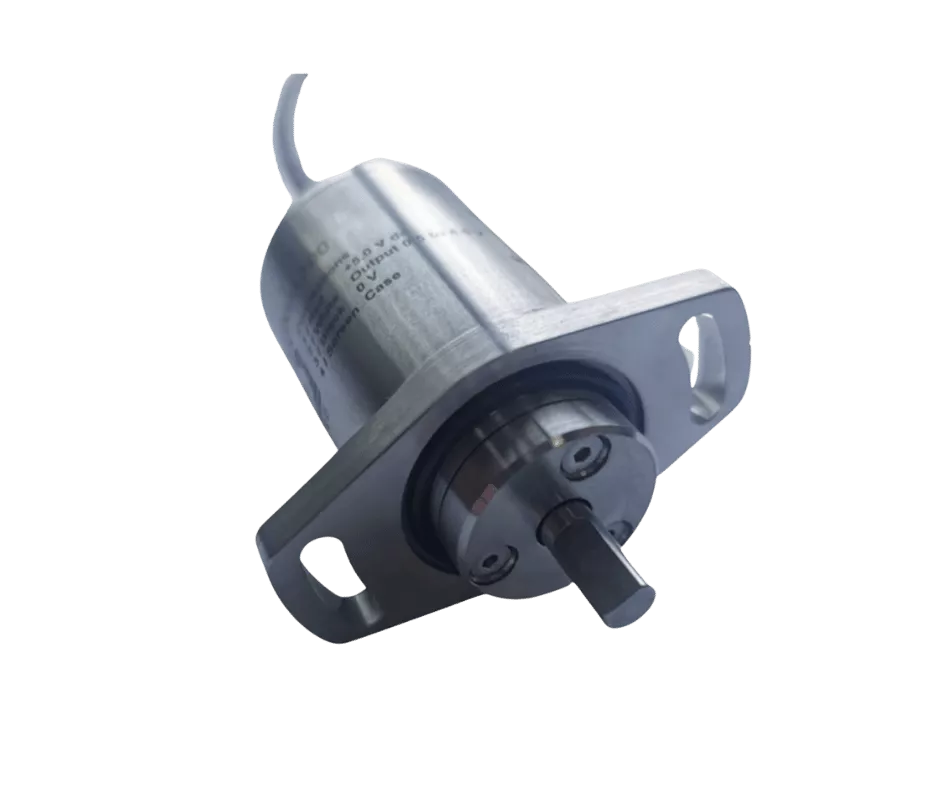

S508 Submersible rotary sensor

Compact, high-accuracy rotary sensor with waterproof stainless steel design for industrial, marine, and vehicle environments.

Eigenschaften

Factory-set measurement range up to 160° with high linearity
Sealed to IP68 (10 Bar) and IP69K with 316 stainless steel housing
Non-contact inductive technology for long service life
Infinite resolution and low noise (< 0.02% FSO)
Compact Ø35 mm body and 51 mm length
Multiple voltage and current output options

Performance highlights S508 Submersible rotary sensor

The S508 is a high-resolution submersible rotary sensor engineered for harsh industrial, marine, vehicle, and offshore applications. It delivers precise angular feedback using Althen’s non-contact inductive technology. With excellent linearity (≤ ±0.25% FSO) and virtually infinite resolution, this sensor ensures reliable, repeatable measurements over long service life—even under extreme conditions.

Usage conditions

Encased in 316 stainless steel and sealed to both IP68 (10 Bar) and IP69K standards, the S508 is designed for rugged environments with full EMC protection. It operates reliably between -40°C to +125°C and is vibration and shock resistant (IEC 68-2-6 and 68-2-29).

Possible applications

Hydraulic or submersible valve monitoring
Offshore drilling equipment
Steering and rudder angle detection (marine)
Tilt or rotation measurement in mobile machinery
Industrial robotics and automation arms

Advantages of choosing this rotary position sensor

The S508 offers cost-effective durability, outstanding stability across temperature ranges, and exceptional customization. Customers can specify the measurement range (up to 160°), signal output, and cable length. With compact dimensions and flexible mounting options, it integrates seamlessly into OEM systems and test benches.

Other important features

Factory configurable for 0–16° to 0–160°
Output options: 0.5–4.5 V, ±5 V, ±10 V, 0.5–9.5 V, 4–20 mA (2/3-wire)
Shaft with calibrated registration mark
Resistant to shock (40 g) and vibration (10 g)
MTBF: 350,000 hours at 40°C
