FTCT-P7 Infrarot-Temperatursensor
Perfekt geeignet für die Temperaturmessung von dünnen Kunststoffmaterialien wie PET, PU, PTFE, PA oder CTA

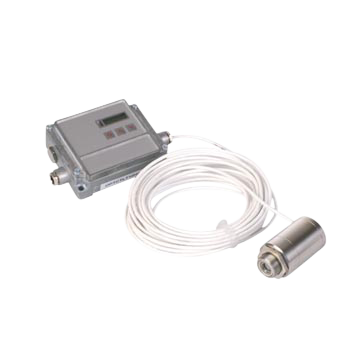

About the FTCT-P7 Infrared Temperature Sensor
Due to its special spectral region of 7.9 µm, the innovative pyrometer FTCT-P7 is perfectly suited for temperature measurements of thin plastic materials like PET, PU, PTFE, PA or CTA.
It measures temperatures precisely from 0°C up to 710°C (32 °F to 1310 °F) and its measuring head offers a temperature resistance of up to 85°C (185 °F) without additional cooling. The separate electronics box of the foil thermometer is acclaimed for its easily accessible programming buttons and its illuminated LCD display.
With a measuring wavelength of 7.9 µm the infrared thermometer FTCT-P7 is ideally suited for temperature control during the production of thin plastic foils. Among those are materials like polyurethane (PU), polyether sulfone (PES), polyethylene terephthalate (PET), teflon (PTFE) or cellulose triacetate (CTA).
Features FTCT-P7
- Accurate temperature measurement of thin plastic film materials like PET, PU, PTFE, PA
- Rugged and usable up to 85°C ambient temperature without cooling
- Separate electronics with easy accesible programming keys and LCD backlit display
- Selectable analog output: 0/4 -20mA, 0-5V, 0-10V
- Optional USB, RS485, RS232 interface, relay outputs (2x optically isolated), CAN-bus, Profibus DP, Ethernet
Benötigen Sie dieses Produkt für Ihr Projekt?
Fordern Sie jetzt ein unverbindliches Angebot an oder senden Sie uns Ihre Kontaktdaten für eine unverbindliche und kostenfreie Beratung. Unsere Vertriebsingenieure setzen sich so schnell wie möglich mit Ihnen in Verbindung.
Sprechen Sie mit unseren Experten
Nicht das richtige Produkt? Wir bieten Standard-Sensoren, helfen Ihnen aber auch gerne mit einem maßgeschneiderten Aufnehmer oder einer kompletten Messlösung weiter. Kontaktieren Sie uns einfach für eine kostenlose Beratung oder einen Kostenvoranschlag.
KontaktTechnische Spezifikationen
Spezifikationen | Wert |
---|---|
Response time | 150ms |
Spectral range | 7.9µm |
Temperature range | 0°C to 710°C |
