MC-KP LVDT & RVDT Amplifiers

Single channel LVDT/RVDT amplifier

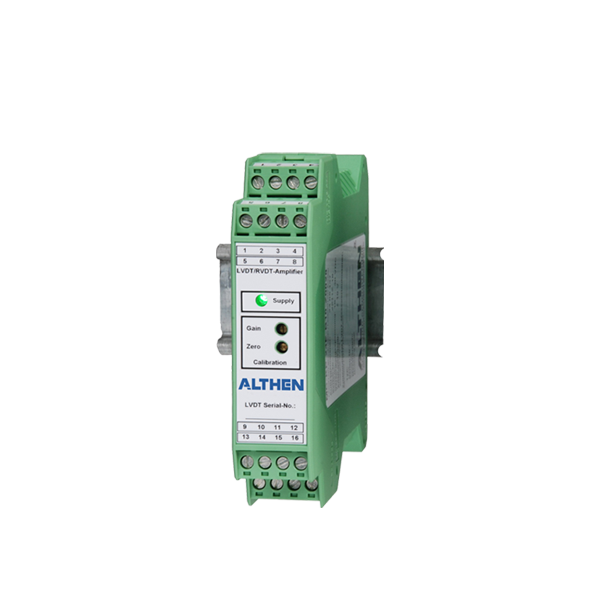

About the MC-KP LVDT & RVDT Amplifiers

The LVDT measuring amplifier MC-KP for DIN top-hat-rail mounting offers supply and signal evaluation for LVDT transducers and gage head transmitters with an oscillator frequency between 1 kHz and 20 kHz. By use of multiple LVDT measuring amplifiers an oscillator voltage synchronization is possible. For further evaluation standard analogue outputs are available.

The amplification can be adjusted by an internal DIP switch.

The potentiometers Z (Zero) and G (Gain) accessible via the enclosure lid allow a calibration correction.



Key features MC-KP LVDT & RVDT

  • Single Channel LVDT/RVDT Amplifier
  • Supply voltage 10-18 VDC / 18-30 VDC
  • Analogue output 0-10 V / ±10 V / 4-20 mA
  • Plastic enclosure for DIN-top hat rail mounting (IP20)
  • Dimensions (W x H x D) 23 x 99 x 115 mm



Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Configuration EMC aluminium die-cast enclosure IP65
Dimens. [mm] 175 x 80 x 57
Galv. isolat. yes
Output 0-10 V ±10 V 4-20 mA
Supply voltage 10-18 VDC 18-30 VDC
