GLET-IU-BA2-BA Interface for Data Loggers
Passive modular enclosure for the conversion of up to 4 measuring signals 0(4) - 20 mA into a precise signal 0(1) - 5 V.

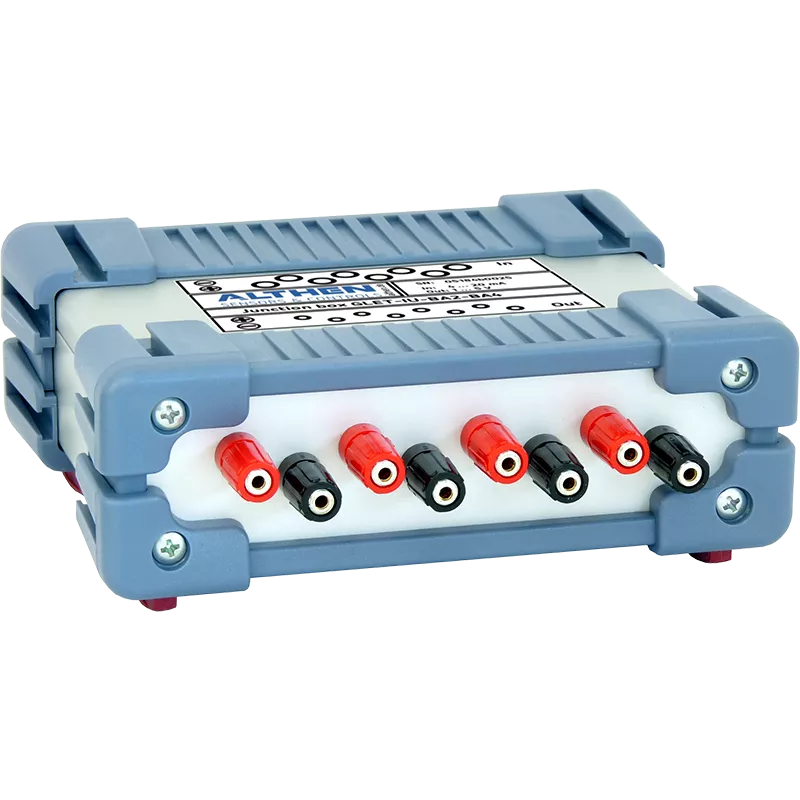

About the GLET-IU-BA2-BA4 Module
GLET-IU-BA2-BA4 is a passive modular enclosure for the conversion of up to 4 measuring signals 0(4)...20 mA into a precise signal 0(1)...5 V in connection with a datalogger (model GL2xx/GL8xx).
- Graphtec Midi Logger GL240
- Graphtec Midi Logger GL840-M & GL840-WV
Specifications
- Precision resistors 250 Ohm (0.1 %)
- Connection via test socket
- Supply voltage: ---
- Dimensions: 45 x 115 x 90 mm
Scope of delivery
- GLET-IU-BA2-BA4 module (without connection cable)
- Recommended accessories: ADAPKLS4 (set of 2 plugs for direct connection of strands)
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Data logger | Test socket 2 mm |
| Design | Desktop housing |
| Dimensions | approx. 45 x 115 x 90 mm (WxHxD), without connections |
| Electrical supply measuring signal: | Test socket 4 mm |
| Input | IIN = 0 ... 20 mA or 4 ... 20 mA (UMAX = 30 V) |
| Operating temperature | 0 ... +50 °C |
| Output | UOUT= 0 ... 5 V or 1 ... 5 V |
| Protection class | IP20 |
