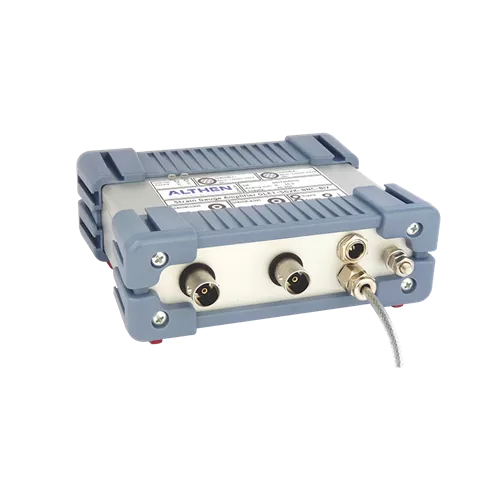

GLET-SG2K-BNC-BI7 Interface for Data Loggers
Active modular enclosure with 2 channel strain gauge amplifier
About the GLET-SG2K Module
Active modular enclosure with 2 channel strain gauge amplifier
- Connection via BNC and jack
- Supply voltage: 24 VDC ±5 %
- Dimension: 45 x 115 x 90 mm
Active modular enclosure for the connection of passive strain gauge transducers / sensors (bridge resistance more than 350 Ohm) in connection with a datalogger.
GLET Module GLET-2G2K-BNC-BI7 can be used for the following data loggers
- GL2xx (Graphtec Midi Logger GL240)
- GL8xx (Graphtec Midi Logger GL840-M & GL840-WV)
- GL9xx (Graphtec Midi Logger GL980)
- GL2000 (Graphtech Midi Logger GL2000)
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Analog output rating | max. 1 mA |
Analog output signal | 0 … 10 V, ±10 V |
Connector for transducer | 7-pin connector (Binder, supplied with mating) |
Dimension without connectors (wxhxd) | approx. 45 x 115 x 90 mm |
Electrical connection analog output to datalogger | 2 mm jack |
Environmental sealing | IP20 |
Input sensitivity | 1 … 3 mV/V |
Limit frequency | 1 kHz |
Number of measuring channels | 2 Potentiometers for zero and span adjustment |
Operating temperature range | 0 ... +50 °C |
Strain gauge excitation | 5 VDC (max. 15 mA/channel) |
Supply voltage | 24 VDC ±5 % *) |
