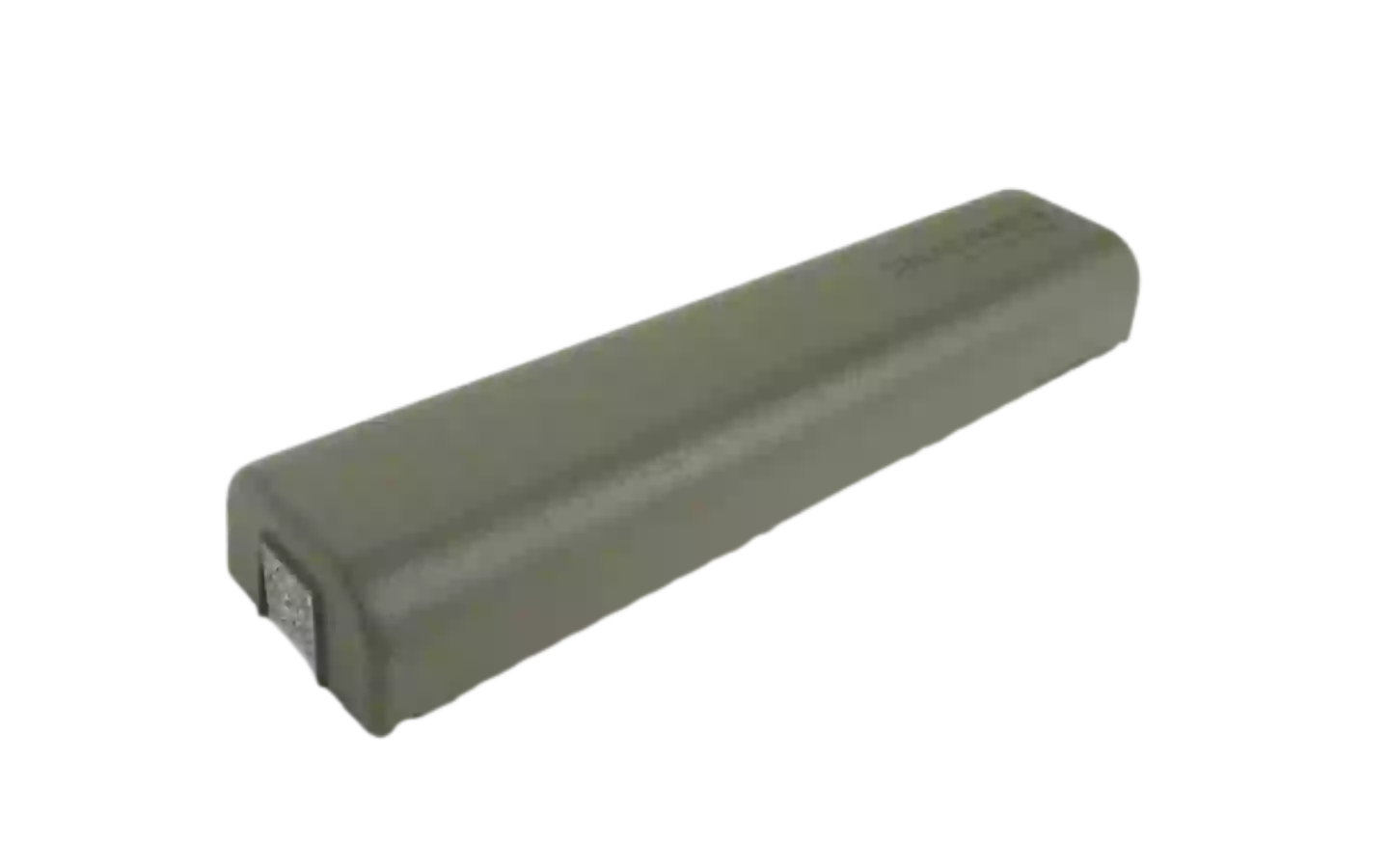

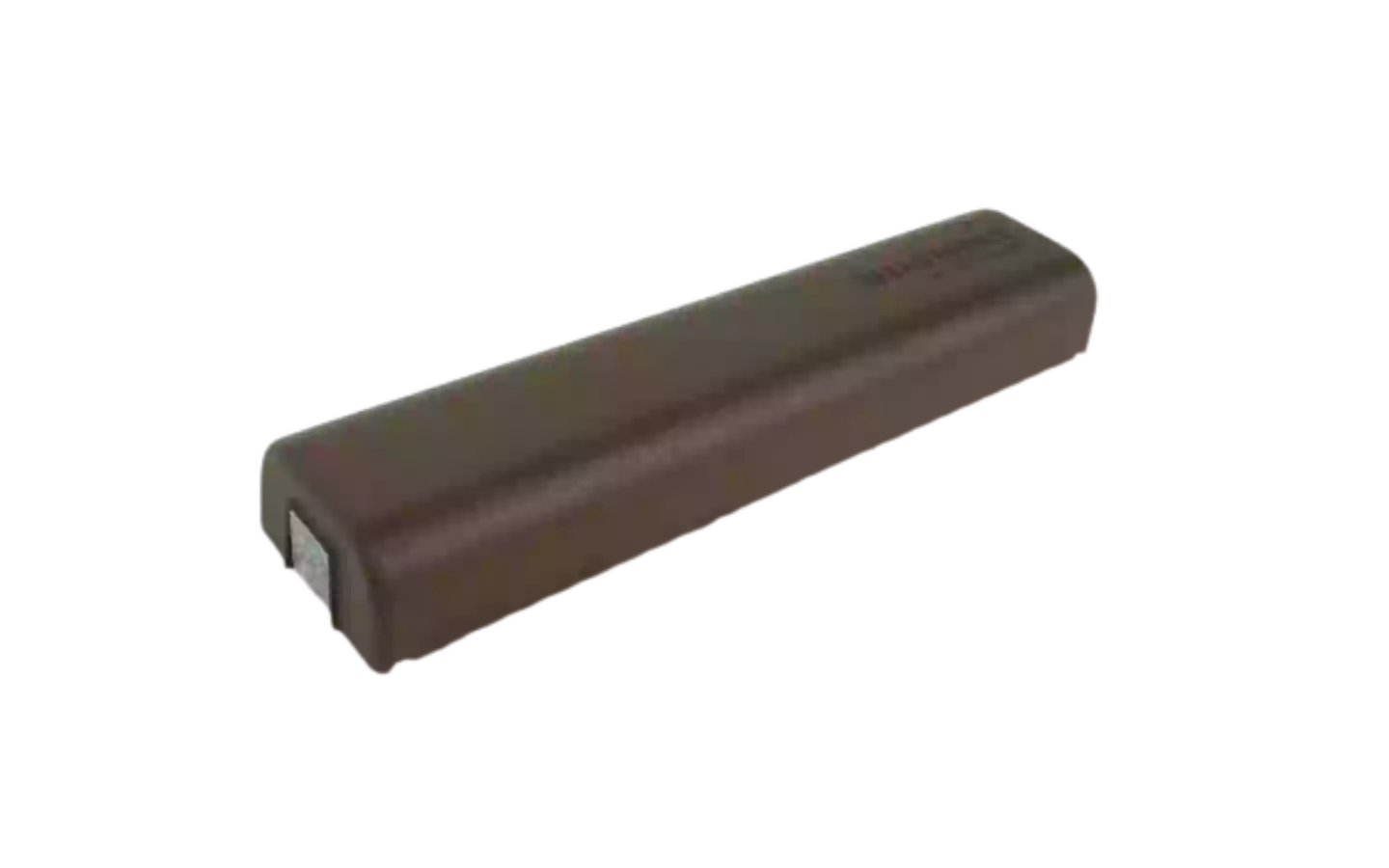

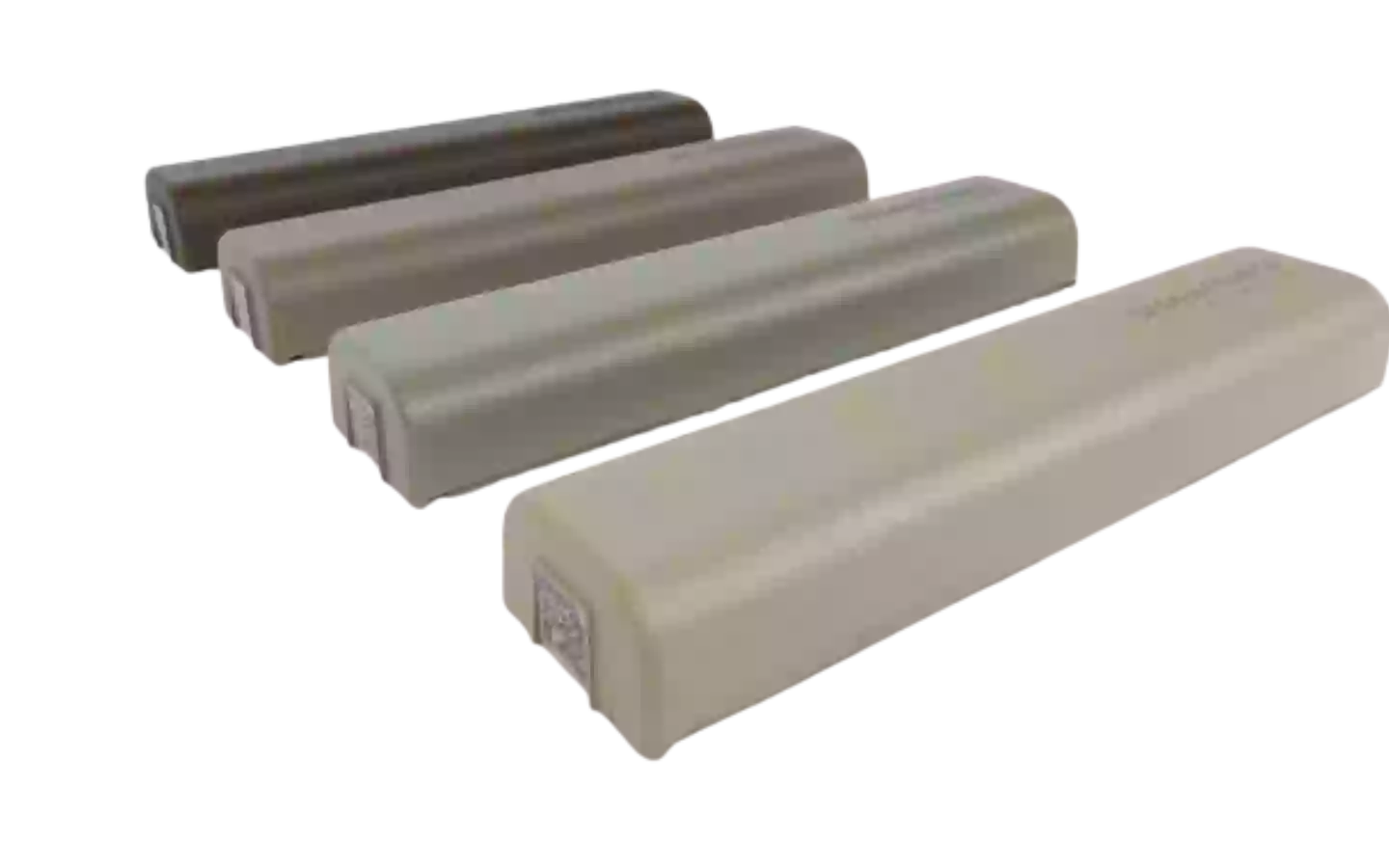

SmartBrick

Smart structural health monitoring solution for civil infrastructures such as buildings, quay walls and bridges


Key features

  • Easy to install
  • Monitors large-scale structures
  • Improves maintenance and safety
  • Usable with interactive dashboards
  • Low-cost, high-tech, stick-and-play sensor system


SmartBrick for precise monitoring

SmartBrick is a IoT sensor designed for precise and affordable monitoring of civil infrastructure (quay walls, foundations,bridges and buildings). SmartBrick detects and monitors inclination and other physical parameters with high accuracy. It transmits this data wirelessly to an online platform.

Scalable IoT measurement system

The combination of accurate daily measurements, self learning algorithms and ultra-low power consumption makes SmartBrick a unique scalable measurement system. Creating a fully wireless, easy-to-implement, battery-driven and low-cost measurement solution.

Predictive capabilities

As SmartBrick collects more data, it improves its predictions through self-learning algorithms. This makes early warnings more reliable and helps detect potential issues before the become problems.

Solid predictions an no more surprises

SmartBrick permanently monitors changes, damage and imminent danger of collapse. With SmartBrick it is possible to make solid predictions about the state and condition of civil infrastructure. This eliminates uncertainty, panic and emergency fixes, allowing for beter priotization of maintenace activities. No more surprises!


Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Tilt measurement Range ± 50°
Tilt measurement accuracy ± ≤0.1°
Inclination 2-axis inclination, X+Y axis
Range temperature -20° C to +50° C
Temperature accuracy ± 0,2°C
Power source Battery 3.6V/3200mAh
Battery life >5 years, possibly 7 - 10 years (two readings a day)
Housing Material PC Kingfa JH850 UV
Dimensions 211 mm x 50mm x 36 mm (wall brick size)
Mounting Glue or screws
Protection IP67
Device management Remotely wireless programmable (two way communication)
Environmental Operating range -20° C to +50° CMax. humidity 10% to 95%, non condensing
Storage temperature -40° C to +85° C
