sDAQ-Set Data Acquisition System
Data Acquisition System with 1 channel hot-wire measurement technique
Key features
- 8-channel data acquisition system with 16-bit resolution
- 1x eCTA hot-wire bridge + 2x HWP10 hot-wire probes
- 1x PT100 temperature sensor

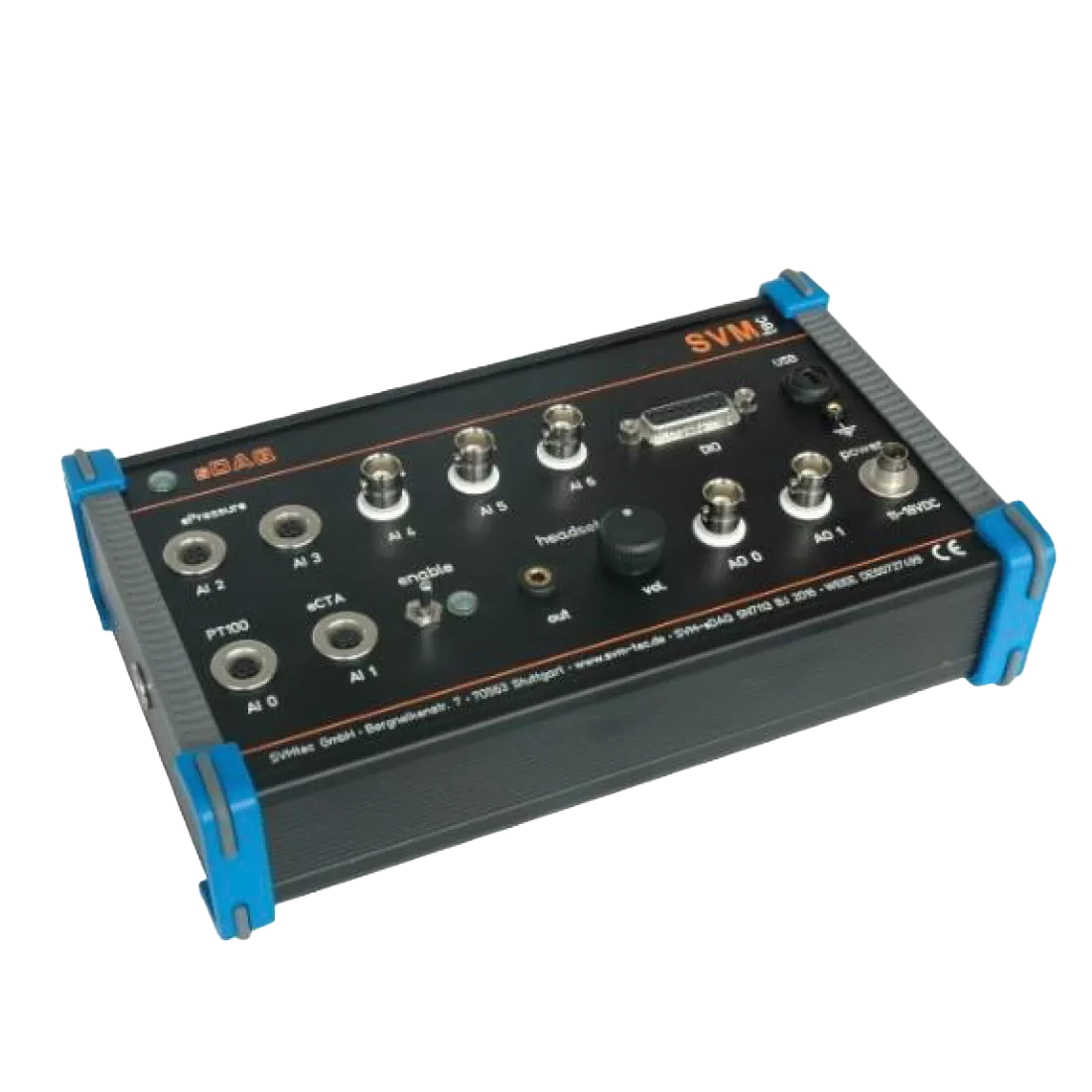

About the sDAQ-Set Data Acquisition System
The sDAQ data acquisition system is specifically designed for experiments in the field of fluid mechanics and aerodynamics.
An 8-channel data acquisition card with 16bit resolution from the company National Instruments is the centrepiece of the device. The in- and outputs of the card are adjoint with plug-in connectors which allows the direct connection of the sensors that are supplied with the product. The necessary sensor supply is already connected with the connectors. The remaining analogous in- and output are placed onto BNC sockets. The connection to the computer consists of a USB interface.
An easy data acquisition software is included in the delivery. With this software the data acquisition card can be configurated, the values can be read, and the physical units can be converted and saved. The data acquisition software is written in LabVIEW 2015 and is delivered as independently executable program as well as source code. Based on this program easy adaptations towards the respective measurement task can be made. For this purpose, the program package LabVIEW 2015 or higher from National Instruments is necessary which is not included in the delivery.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Data acquisition / 8x analogue input | 16 bit, ± 10 V, accuracy ±6 mV, total sampling rate 50 kS/s kHz |
| 2x analogue output | 16 bit, ± 10 V, accuracy ±7 mV, update rate 5 kS/s |
| 8x digital in-/outputs | TTL (0-5 V) |
| 1x Counter | 32 bit / 5 MHz, TTL (0-5 V) |
| Further internal components / PT100 amplifier | 0…300° C default, configurable |
| Barometrical pressure sensor | 800…1100 hPa |
| CTA-Mainboard | Supply eCTA and signal conditioning HD |
| Connections / 1x PT100 temperature sensor | Binder Serie 712, 5 pin |
| 1x eCTA hot-wire probe | Binder Serie 712, 7 pin |
| 2x ePressure pressure sensor | Binder Serie 712, 4 pin |
| 3x analogue input | BNC |
| 2x analogue output | BNC |
| 8x digital in- and output | D-Sub, 9 pin |
| 1x Audio | 3.5 mm audio jack (30 Ohm) |
| Supply | Binder Serie 712, 2 pin |
| Scope of delivery – set | 1x sDAQ / 1x plug-in power supply 12 V / 1 A / 1x Pt100 temperature sensor / 1x eCTA hot-wire bridge / 2x HWP10/90 hot-wire probe / 2x ePressure differential pressure sensor, pressure range at buyer’s option / 1x headphone / 1x carrying case / SVMdaq software for the recording of the measured values |
