FBD Disc brake profile gauge

Laser-based disc brake profile gauge for accurate railway brake disc inspection. Designed for measuring brake disc thickness, wear and full profile geometry with Bluetooth connection to smart devices.

Key features

Laser scanning of brake disc profiles
Measures brake disc thickness and wear
Full profile analysis of working surface
Measurement error of ±0.03 mm
Bluetooth connected to smart devices
Database storage and tolerance control

About the FBD-Series Brake Disk Profile Gauge

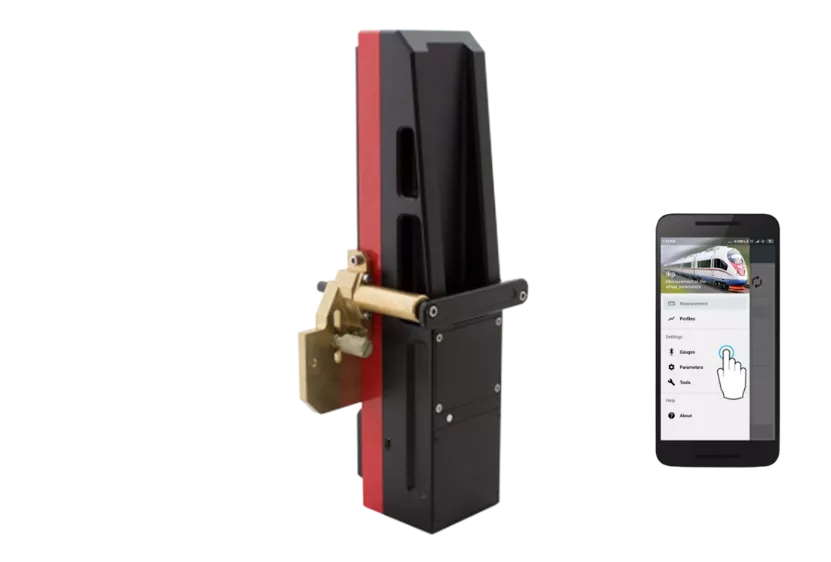

The FBD Disc brake profile gauge is a laser-based measurement system for inspecting the working surface of railway brake discs. It measures brake disc thickness, brake disc wear and overall brake disc thickness, while also providing full profile scanning and analysis.

With a measurement error of ±0.03 mm and an indication resolution of 0.01 mm, the system supports accurate and repeatable brake disc condition monitoring. The profile measurement range is 150 mm, enabling detailed analysis of the disc surface.

Usage conditions

The FBD is suitable for measuring brake discs installed on the wheel as well as brake discs installed on the wheelset axle. For axle-mounted brake discs, a removable bracket is used. The laser scanning module is positioned directly on the brake disc, allowing measurements without removing the disc from the vehicle.

The system uses Bluetooth connectivity to smart devices. Any outdated PDA references in the manual should be understood as obsolete for the Althen version.

Possible applications

Railway brake disc inspection
Brake disc wear monitoring
Maintenance of rolling stock
Tolerance verification
Preventive and predictive maintenance
Brake disc profile analysis

Advantages of choosing this product

The FBD enables fast, accurate and structured brake disc inspection directly on railway vehicles. By combining laser scanning with digital data storage and Bluetooth connectivity, it helps maintenance teams reduce manual checks, improve traceability and make better decisions based on measured profile data.

The system can compare scanned disc profiles with reference profiles and highlight values outside tolerance limits, supporting safer and more efficient maintenance workflows.

Other important features

Measures brake disc thickness
Measures brake disc wear
Calculates overall brake disc thickness
Full profile scanning of the working surface
Electronic database support
Reference profile comparison
Configurable measurement schemes
Calibration with optional calibration blocks
