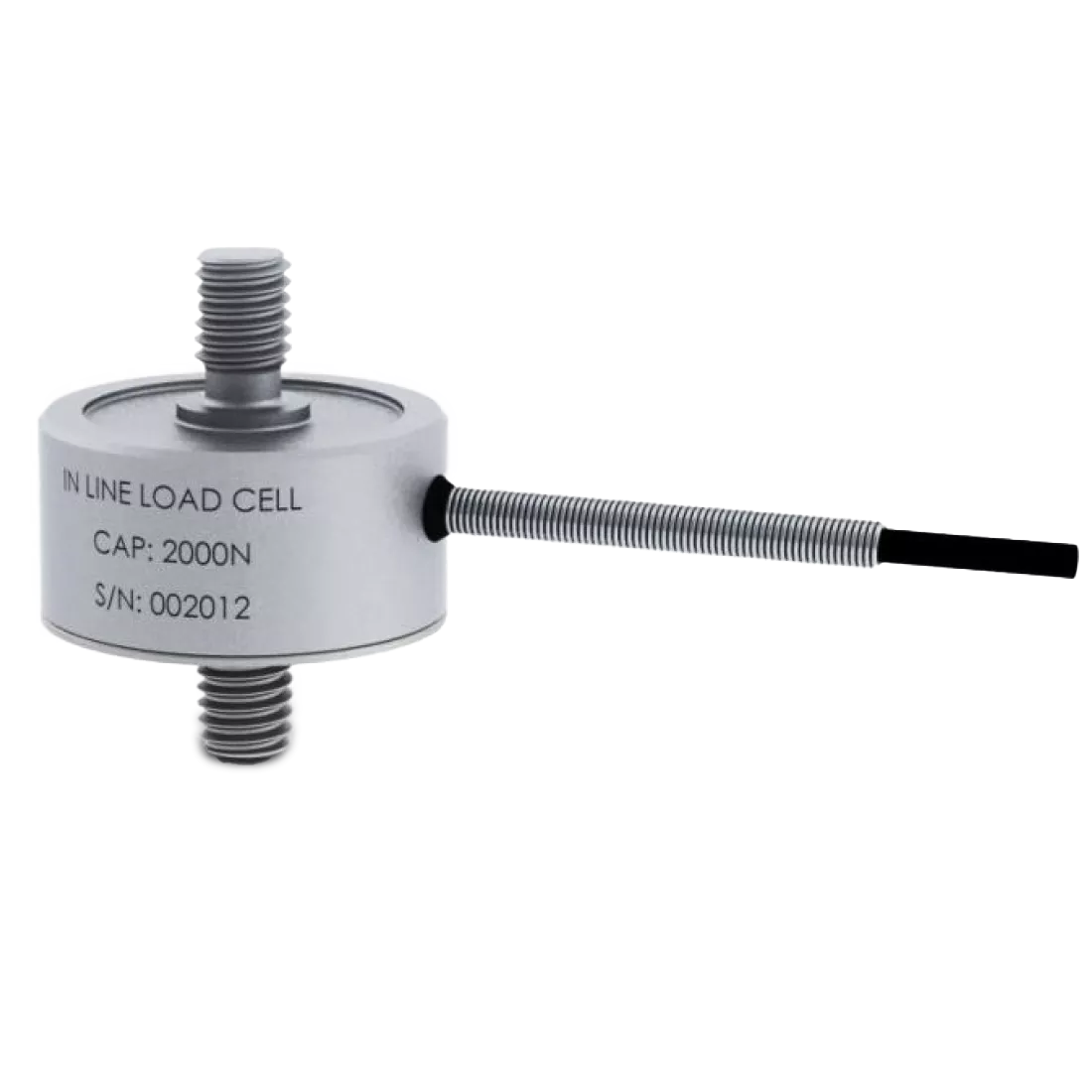

AILC2 in line loadcell

Strain gauge based transducers with temperature compensation and excellent overall performance.


Key features

  • For tensile + compressive loads up to 5000N/1000lbf
  • ±0.25% non-linearity
  • Excellent overall performance

About the AILC2 in line loadcell

Miniature threaded In Line Load Cells are strain gauge based transducers with temperature compensation and excellent overall performance.
This type measures tensile and compressive loads up to 5000N/1000lbf with better than ±0.25% non-linearity.

Wiring

The sensor is provided with a #32 AWG 4-conductor braided shielded cable with an outer jacket of 0.087” [2.2 mm] diameter, 5 ft [1.5m] long, with no connection between the shield and the sensor body. For additional protection, the cable is contained within a stainless steel spring for strain relief purposes for the first 1” [25 mm].

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Capacity 200N, 500N, 1000N, 2000N & 5000N, 50lbf, 100lbf, 250lbf, 500lbf, 1000lbf
Rated Output (RO) (mV/V) 2 nominal
Allowable Maximum Load (%) 150 full scale
Non-Linearity (%) ±0.25 of RO max.
Hysteresis (%) ±0.25 of RO max.
Repeatability (%) ±0.1 of RO max.
