CTLB Threaded load button
Compact compression force sensors with threaded mounting for load measurements up to 10,000 lb (5,000 kg). Customizable thread and cable configurations available.
Key features
- Measures up to 5,000 kg / 10,000 lb
- Compact design with threaded mounting
- Optional amplified and digital versions
- Available with integrated TEDS chip
- Temperature compensated from -15 to +70 °C
- Customizable threads and cable types
About the CTLB Threaded load button

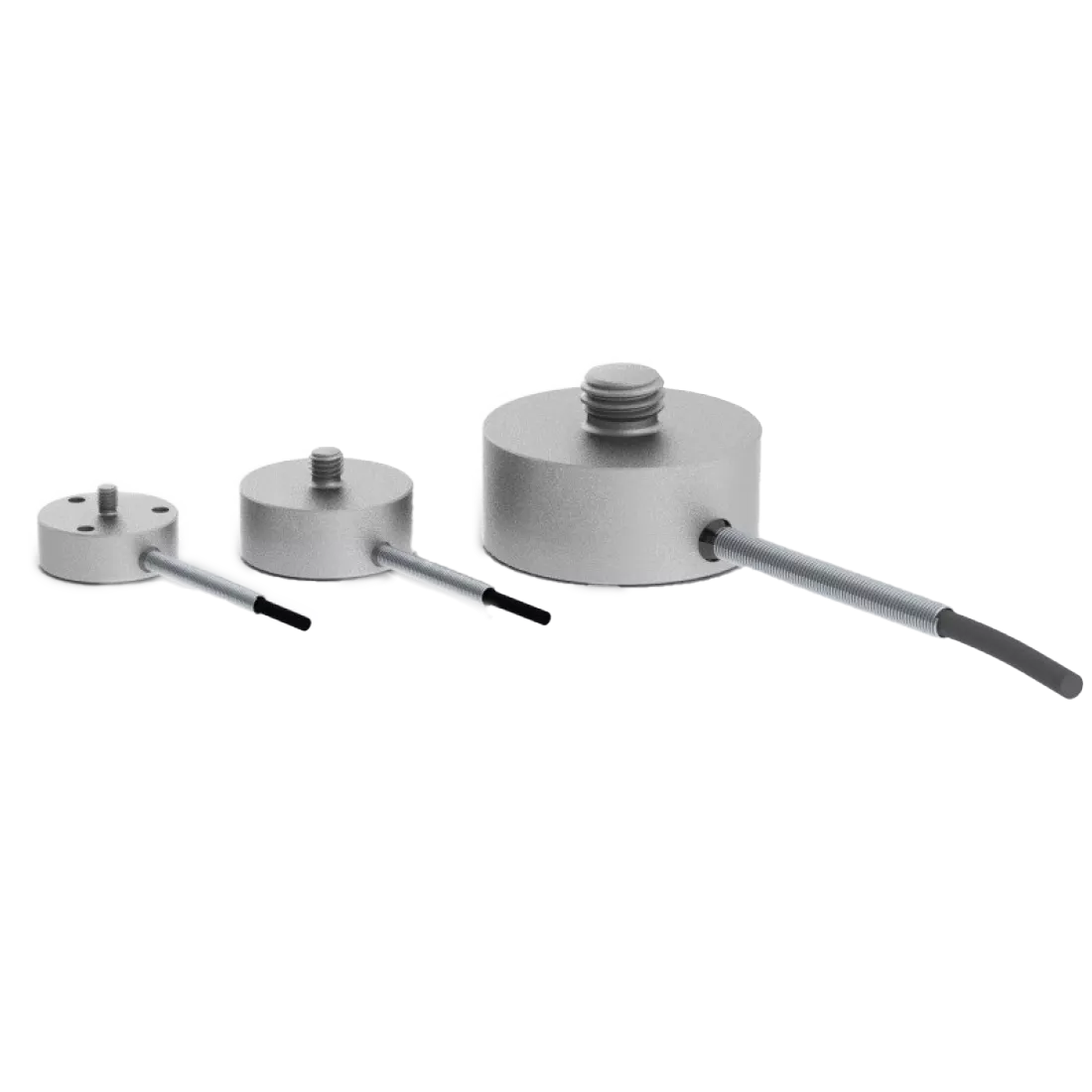

The CTLB series threaded load buttons are designed for accurate compression force measurement in compact and demanding environments. The series includes three models — CTLB1, CTLB2 and CTLB3 — covering a wide range of capacities from 1 kg up to 5,000 kg (10,000 lb). Models from 50 kg and up are made of fully welded stainless steel for maximum durability and performance.
Usage conditions
Each model comes with a shielded 4-conductor cable (1 m or 2 m depending on the range), and optional versions include integrated TEDS chip, amplification, or digital output. These load buttons are ideal for force measurement in applications where space is extremely limited and high reliability is required.
Possible applications
- Compression force monitoring in industrial assemblies
- Robotics and automation
- Tooling and clamping systems
- OEM integration in compact force applications
- Test rigs and validation labs
Advantages of choosing this product
The CTLB1–3 range offers a rugged and precise solution for embedded compression force measurement. Its small footprint and configurable design make it highly versatile. Althen also offers quick customization for specific thread types, cable lengths, and output requirements.
Other important features
- IP64 environmental protection
- Material: Aluminum (1–20 kg), stainless steel (≥50 kg)
- Zero balance: max 2% FS
- Hysteresis: ±0.3% FS
- Temperature coefficients: 0.01–0.02% per °C
- Extended temperature and output options available
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Capacity (kg) | 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000 |
| Capacity (lb) | 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000 |
| Output (mV/V) | 1± 20% for 1kg - 20kg and 2lb – 50lb, 1.5 ± 20% for 50kg – 5000kg and 100lb – 10000lb |
| Input Impedance | 350 Ω nominal (700 Ω nom. For 2000kg, 5000kg, 5000lb & 10000lb) |
| Output Impedance | 350 Ω nominal (700 Ω nom. For 2000kg, 5000kg, 5000lb & 10000lb) |
| Allowable Maximum Load (%) | 150 full scale |
| Non-Linearity (%) | ± 0.5 FS max. |
| Hysteresis (%) | ± 0.3 FS max. |
| Repeatability (%) | ± 0.1 FS max. |
| Total Error (%) | ± 0.8 FS max. |
