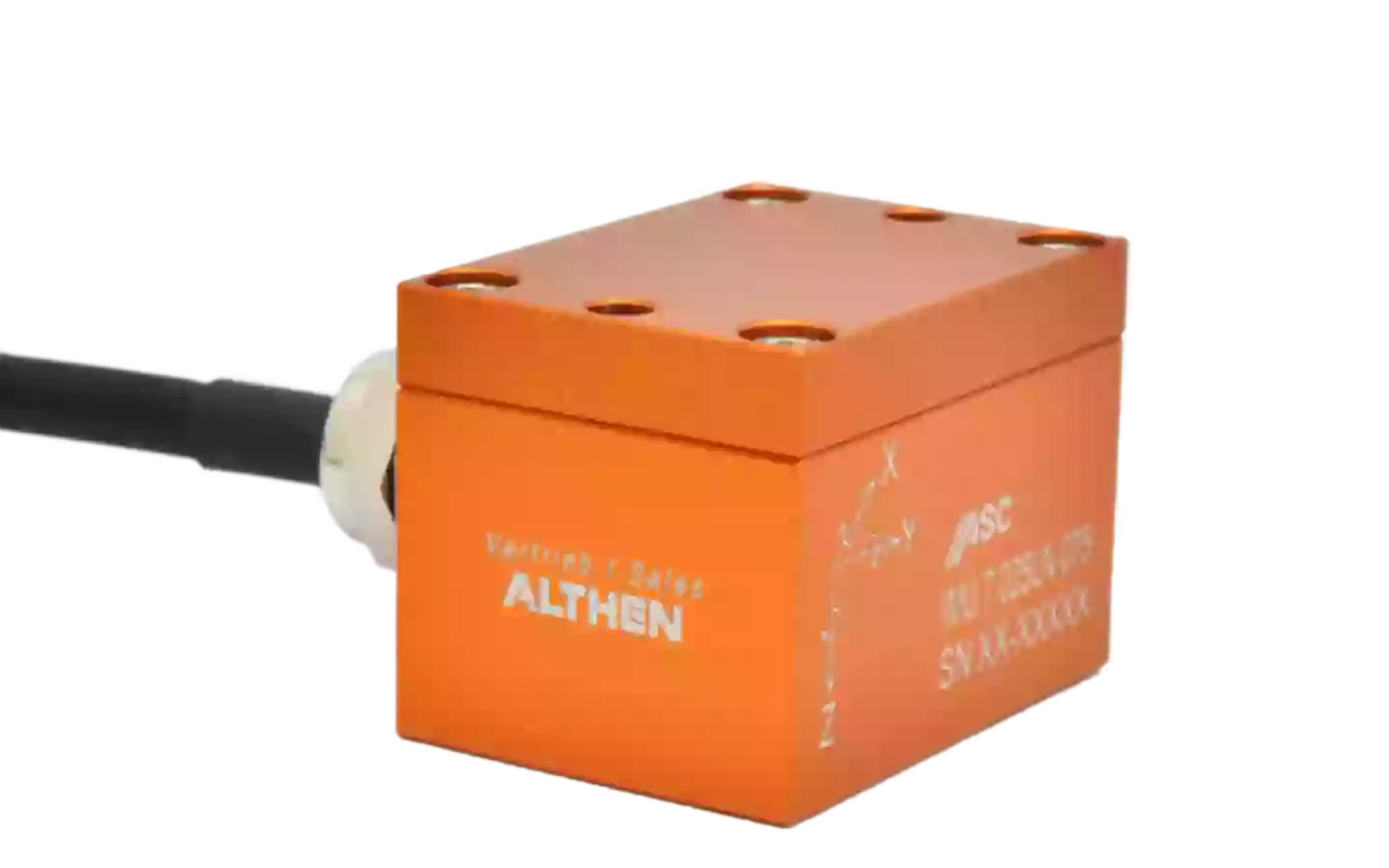

ASC IMU 7.X.Y Inertial measurement Unit
6-DOF industrial grade IMU with MEMS capacitive accelerometers and vibrating ring gyroscopes for vehicle dynamics and short-term navigation bridging
Key features
- 6-DOF system (3 accelerometers + 3 gyroscopes)
- Modular design with selectable ranges
- Accelerometer range: ±2 g to ±50 g
- Gyroscope range: ±75 °/s to ±900 °/s
- High bias stability (12 °/hr)
- Low angular random walk (0.2 °/√hr)
- Low-noise analog voltage output
- Shock resistance up to 1,000 g
- Lightweight anodized aluminum housing, IP65
- Detachable connector cable with customizable length and connectors
Performance
The ASC IMU 7 is an industrial grade inertial measurement unit (IMU) designed for precise detection of linear accelerations and angular rates across six degrees of freedom. It integrates three capacitive MEMS accelerometers and three vibrating ring gyroscopes in a single compact housing. Available with either Low Noise (LN) accelerometers for outstanding noise performance (7–50 µg/√Hz) or Medium Frequency (MF) accelerometers for wider frequency response up to 4.5 kHz, the ASC IMU 7 adapts to application-specific requirements. With gyroscope bias stability of 12 °/hr and angular random walk of 0.2 °/√hr, it ensures highly stable performance.
Usage conditions
The IMU’s robust anodized aluminum housing (IP65) makes it reliable in harsh environments, while its design ensures resistance to shocks and vibrations. It operates within −40 °C to +85 °C, with power supply from 5–40 VDC and low current consumption (<40 mA LN / <35 mA MF). The detachable connector cable can be customized in length and connector type.
Possible applications
- Vehicle and running dynamics (cars, trains, ships)
- Driving and ride comfort testing
- Short-term bridging navigation during GPS outages (dead reckoning)
- Automated guided vehicles (AGVs) for curve speed optimization and driving control
Advantages of choosing this product
With its modular design, low-noise performance, and robust housing, the ASC IMU 7 offers industrial grade precision at an attractive balance of performance and cost. It is ideal for dynamic testing, automotive engineering, and navigation support systems.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accelerometer ranges | ±2 g … ±50 g (LN or MF) |
| Gyroscope ranges | ±75 °/s … ±900 °/s |
| Accelerometer noise density | 7–50 µg/√Hz (LN), 10–170 µg/√Hz (MF) |
| Gyroscope bias stability | 12 °/hr |
| Angular Random Walk (ARW) | 0.2 °/√hr |
| Frequency response | up to 2.1 kHz (LN), up to 4.5 kHz (MF) |
| Power supply | 5–40 VDC (LN), 6–40 VDC (MF) |
| Current consumption | <40 mA (LN), <35 mA (MF) |
| Shock limit | 1,000 g (operating), 2,000 g (unpowered) |
| Protection class | IP65 |
| Housing material | Anodized aluminum |
| Weight (without cable) | 26 g |
| Cable | Detachable, configurable (12-pin) |
| Operating temperature | −40 °C … +85 °C |
