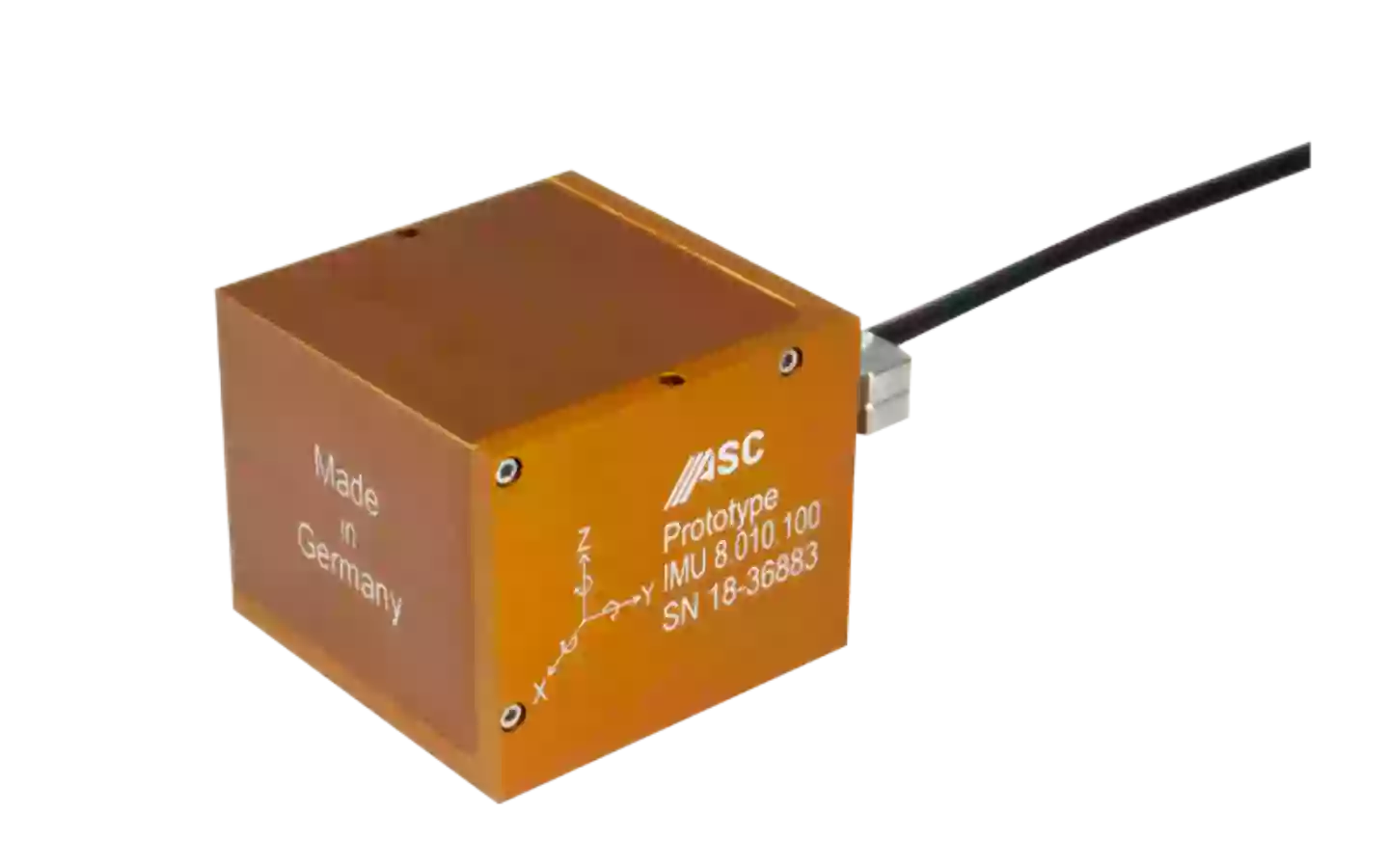

ASC IMU 8.X.Y Tactical grade inertial measurement unit

Perfect for high-precision positioning in a wide variety of applications


Key features

  • 6-DOF system (3 accelerometers + 3 gyroscopes)
  • Modular design with selectable ranges
  • Accelerometer range: ±2 g to ±30 g
  • Gyroscope range: ±10 °/s to ±400 °/s
  • Bias stability: <45 µg (accelerometers), <0.1 °/hr (gyros)
  • Angular Random Walk: <0.01 °/√hr (FOG-like performance)
  • Low-noise differential analog output
  • Lightweight anodized aluminum housing, IP65
  • Detachable connector cable with configurable length and connectors

Performance

The ASC IMU 8 is a tactical grade inertial measurement unit (IMU) based on proven MEMS capacitive accelerometers and vibrating ring gyroscopes. It provides highly precise measurements of linear acceleration and angular rate across six degrees of freedom. With accelerometer ranges up to ±30 g and gyroscope ranges up to ±400 °/s, the ASC IMU 8 combines excellent long-term stability with very low noise. Bias stability is <45 µg for accelerometers and <0.1 °/hr for gyroscopes, with angular random walk <0.01 °/√hr, enabling fiber-optic gyroscope (FOG)-like performance.

Usage conditions

The unit features a compact anodized aluminum housing with IP65 protection, making it suitable for harsh environments. It operates from −40 °C to +85 °C and withstands shocks up to 1,000 g. Power supply is flexible (8–30 VDC), with low current consumption (<120 mA). The detachable 15-pin connector cable offers customization in length and connector type.

Possible applications

  • Railway engineering and track monitoring
  • Mid-term bridging navigation (GPS outages)
  • Automated guided vehicles (AGVs), UAVs and ROVs
  • Robotics and industrial automation
  • Ship guidance and aircraft systems

Advantages of choosing this product

With tactical grade performance in a compact IP65 housing, the ASC IMU 8 ensures reliable navigation and motion tracking even in demanding conditions. Its modular design allows tailored accelerometer and gyroscope ranges, while the differential analog output provides flexibility in integration.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accelerometer ranges ±2 g … ±30 g
Measurement range (gyroscopes) °/s ±10 to ±400
Gyroscope ranges ±10 °/s … ±400 °/s
Operating temperature range °c -40 to +85
Accelerometer bias stability <45 µg
Angular Random Walk (ARW) <0.01 °/√hr
Frequency response >200 Hz (accel), 100 Hz (gyro)
Power supply 8–30 VDC
Current consumption <120 mA
Protection class IP65
Shock resistance 1,000 g
Housing Anodized aluminum
Weight (without cable) 260 g
Cable Detachable, configurable (15-pin)
Operating temperature −40 °C … +85 °C
