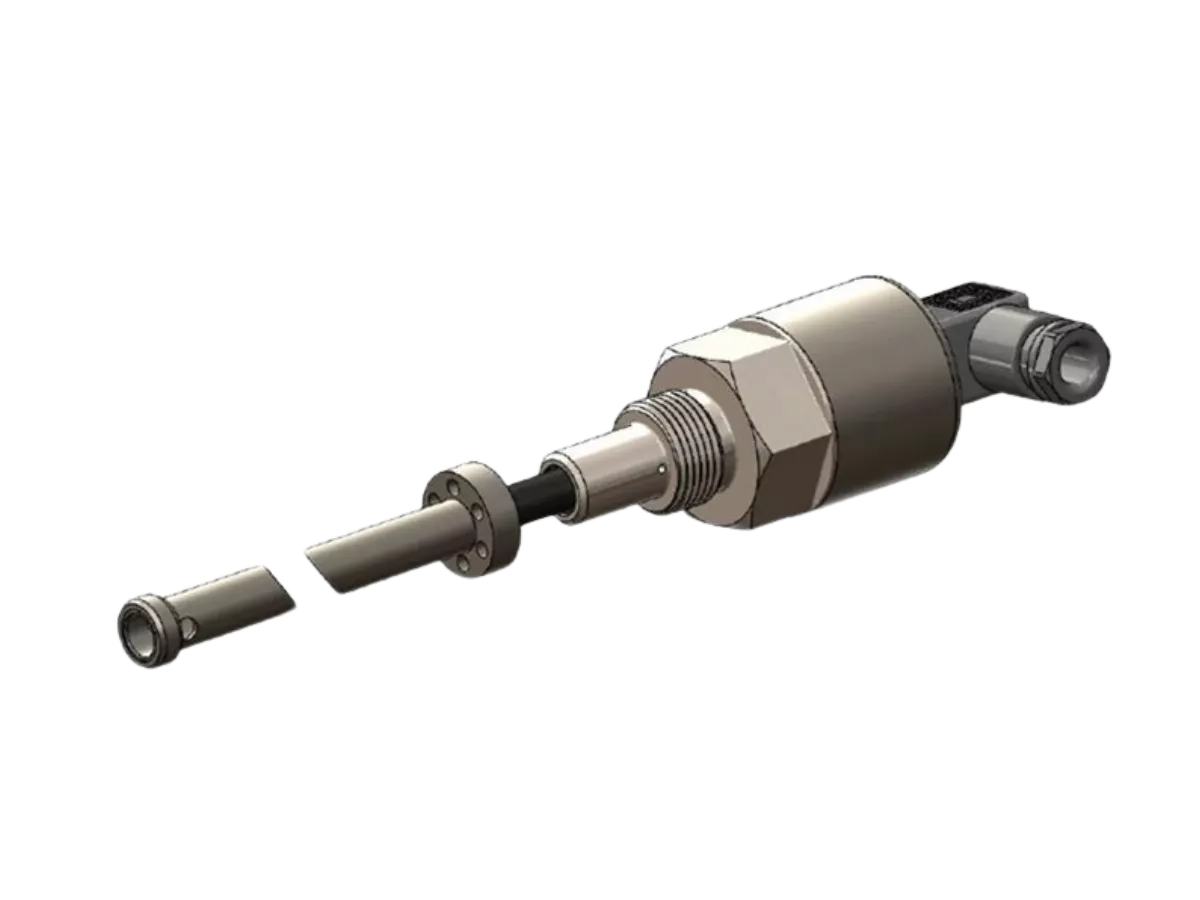

M130 Intrinsically safe long stroke in-cylinder linear position sensor
Rugged, ATEX-approved linear sensor for reliable long-stroke cylinder position feedback in hazardous areas.
Key features
- Intrinsically safe for mining & hazardous zones
- Non-contact inductive technology
- Customer-specific calibrated travel
- High repeatability and resolution
- Sealing to IP67, stainless steel design
- Suitable for strokes up to 1485 mm
Performance highlights of the M130 intrinsically safe long stroke linear position sensor
The M130 is a highly durable, non-contact linear position sensor built for harsh environments. Its inductive technology ensures wear-free operation with excellent accuracy, repeatability, and long-term stability, even under extreme temperature fluctuations.
Usage conditions
Certified ATEX / IECEx / UKEX for Ex I/II M1/GD, the M130 is intrinsically safe for gas, dust, and mining zones. It operates reliably from -40 °C to +80 °C, and is sealed to IP67. The rugged design includes a stainless steel housing and probe with fluoropolymer sheath.
Possible applications
- Hydraulic or pneumatic cylinders in mining equipment
- In-cylinder position feedback in hazardous industrial automation
- Oil & gas field systems
- Underground vehicle hydraulics
- Process control in explosive gas/vapour environments
Advantages of choosing this product
Unlike traditional contacting position sensors, the M130 eliminates mechanical wear with its contactless inductive design. With configurable stroke lengths up to 1485 mm and high EMC protection, it is a reliable OEM choice for demanding safety-critical systems.
Other important features
- Linear output: 0.5–4.5 V ratiometric
- Frequency response: >10 kHz
- Resolution: Infinite
- MTBF: 350,000 hrs at 40 °C
- EMC compliance: EN 61000-6-2, EN 61000-6-3
- 3- or 5-wire connection options
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Stroke range | 0–400 mm up to 0–1485 mm |
| Output signal | 0.5–4.5 V (ratiometric with 5 V supply) |
| Supply voltage | +5 VDC (±10%) |
| Supply current | 10 mA nominal, 12 mA max. |
| Linearity (independent) | ±0.25% FSO (≤450 mm), ±0.5% (≤600 mm) |
| Temperature range (operation) | -40 °C to +80 °C |
| Temperature coefficient | < ±0.01%/°C Gain & Offset |
| Resolution | Infinite |
| Noise | < 0.02% FSO |
| Sealing | IP67 |
| Housing material | Stainless steel |
| Probe material | Fluoropolymer-sheathed stainless steel |
| Intrinsic safety certification | Ex I/II M1/GD, Ex ia IIC T4 Ga |
| EMC performance | EN 61000-6-2, EN 61000-6-3 |
| Vibration/shock resistance | 10 g / 40 g |
| Mounting threads | M20x1.5, M18x1.5, ¾-16 UNF |
| Connection options | Connector (M12), cable gland, 3/5-wire |
| Cable length | Up to 15 m standard, up to 1000 m certified |
