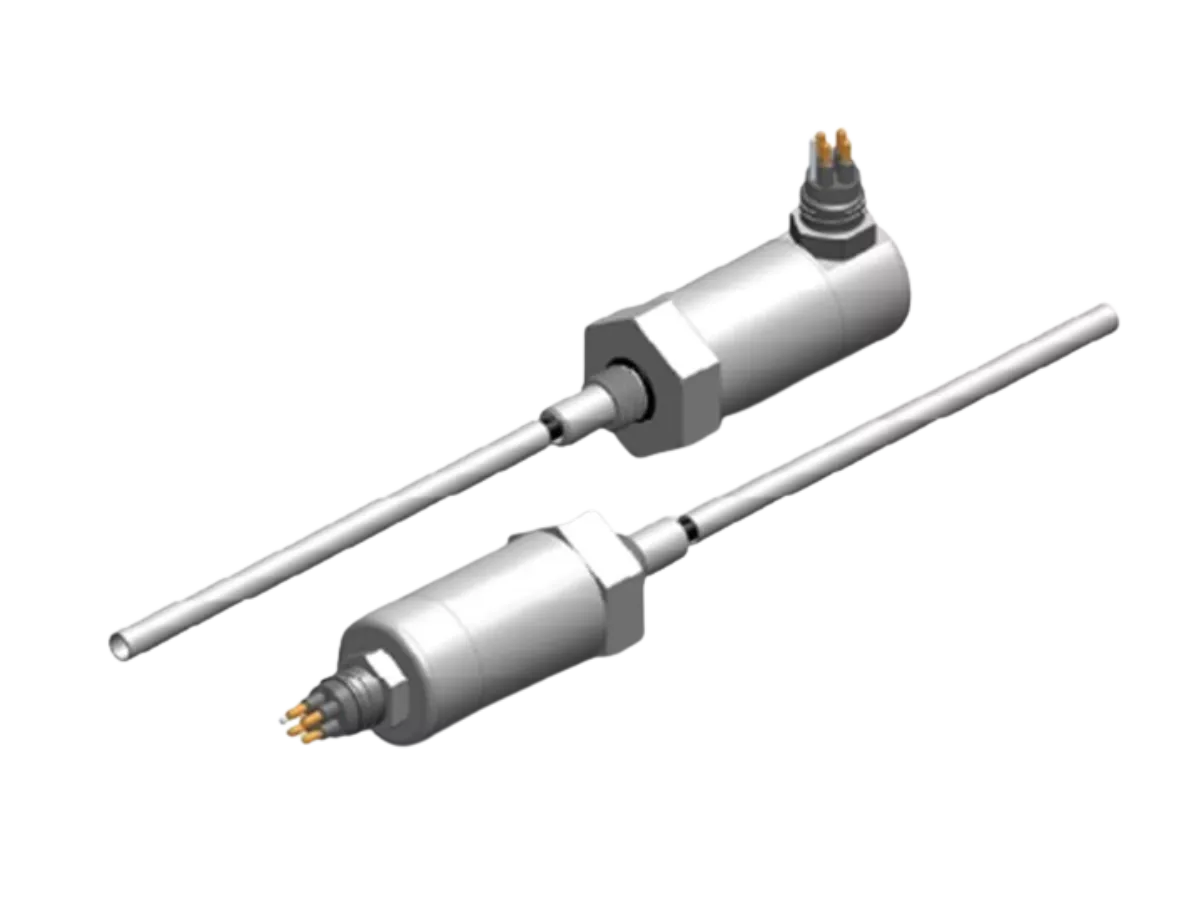

X120 Submersible cylinder linear position sensor intrinsically safe
High-pressure linear position sensor for hydraulic and pneumatic cylinders, intrinsically safe and built for hazardous gas/vapour atmospheres.
Key features
- Intrinsically safe for hazardous gas/vapour zones
- Sealing to IP68, 350 bar absolute
- Non-contact inductive technology for long life
- Calibrated travel from 0–800 mm
- High accuracy and stability over temperature
- Stainless steel housing and fluoropolymer-sheathed probe
Performance highlights
The X120 submersible cylinder linear position sensor delivers precise, stable, and repeatable displacement feedback in the harshest conditions. Using non-contact inductive technology, it ensures long service life with no wear and minimal maintenance.
Usage conditions
Certified ATEX / IECEx / UKEX for intrinsically safe use in explosive gas/vapour atmospheres, the X120 operates reliably at pressures up to 350 bar and temperatures from –40°C to +80°C. Its rugged stainless-steel construction and fluoropolymer-sheathed probe guarantee durability in hydraulic and pneumatic cylinders.
Possible applications
- Hydraulic cylinder position feedback in offshore equipment
- Pneumatic cylinder monitoring in hazardous zones
- Subsea and underwater actuator displacement measurement
- OEM solutions in oil & gas, chemical, and marine industries
Advantages of choosing this product
Engineers benefit from infinite resolution, fast frequency response (>10 kHz), and minimal noise (<0.02% FSO). Each unit is factory-calibrated to the required stroke (5–800 mm) with full EMC protection built in.
Other important features
- Independent linearity up to ±0.25% FSO
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Compact design for easy cylinder integration
- Custom mechanical mounting options available
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Body diameter | 40 mm |
| Body length (to seal face) | 80.3 mm (axial), 88.8 mm (radial) |
| Probe length | Travel + 58 mm |
| Target tube length | Travel + 30 mm, Ø9.45 mm |
| Independent linearity | ≤ ±0.25% FSO (≤450 mm), ≤ ±0.5% FSO (>450 mm) |
| Temperature coefficients | < ±0.01%/°C gain & offset |
| Frequency response | >10 kHz (–3 dB) |
| Resolution | Infinite |
| Noise | <0.02% FSO |
| Intrinsic safety | Ex II 1G, Ex ia IIC T4 Ga (–40°C to +80°C) |
| Operating/storage temperature | –40°C to +80°C |
| Sealing | IP68, 350 bar |
| Hydraulic pressure | Max. 350 bar (absolute) |
| MTBF | 350,000 hrs at 40°C Gf |
